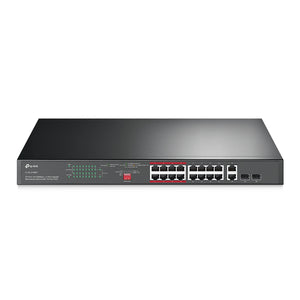

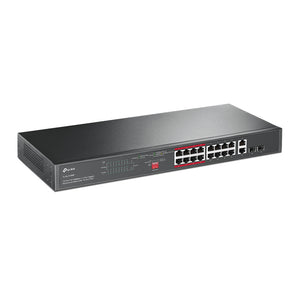

TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit PoE Switch

The TP-Link TL-SL1218MP is a 16-port 10/100 Mbps unmanaged switch with 2 Gigabit ports and 16 Power over Ethernet (PoE+) ports. This switch is designed for small to medium-sized business networks, providing reliable connectivity and power delivery to devices such as IP cameras, VoIP phones, and access points.

Key Features

• Port Configuration:
  • 16 x 10/100 Mbps RJ45 PoE+ ports
  • 2 x 10/100/1000 Mbps RJ45 ports
  • 2 x Combo Gigabit SFP slots for additional fiber connectivity.

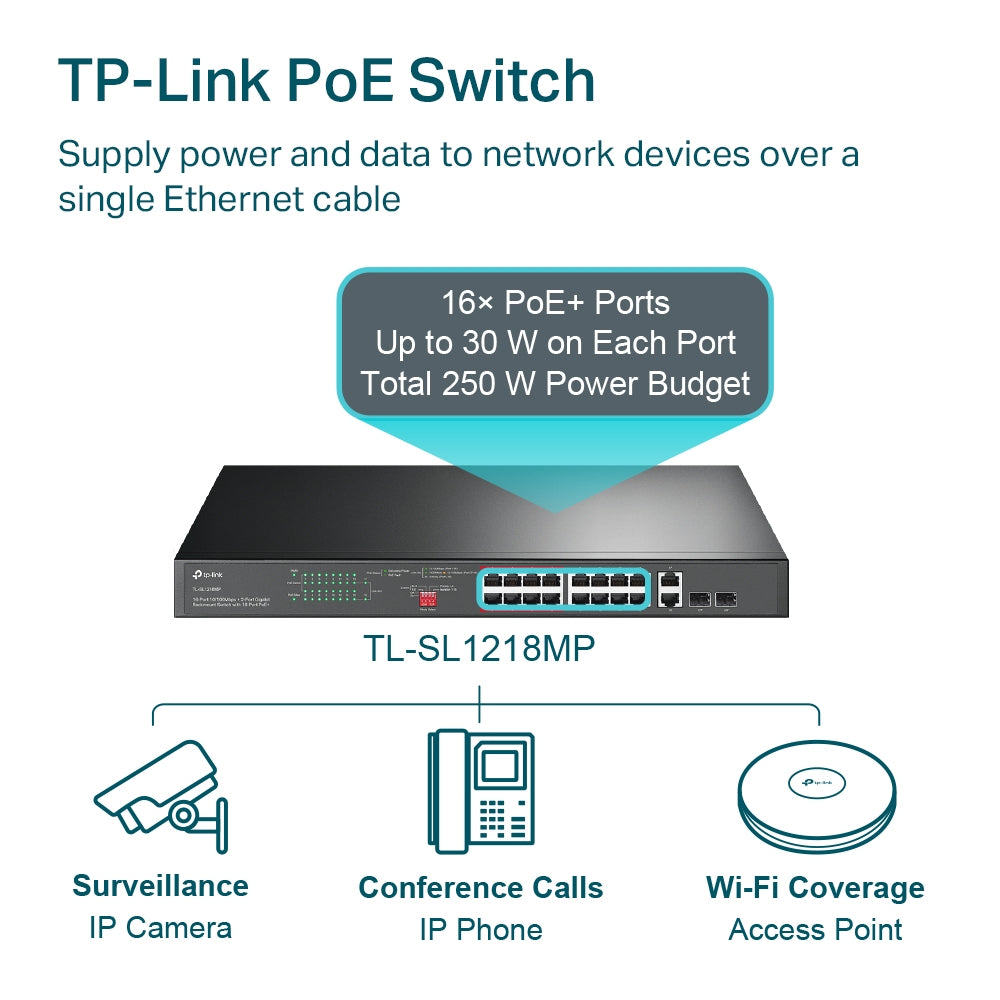

• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 250W, allowing the connection and powering of multiple devices without needing separate power sources.
• Performance:

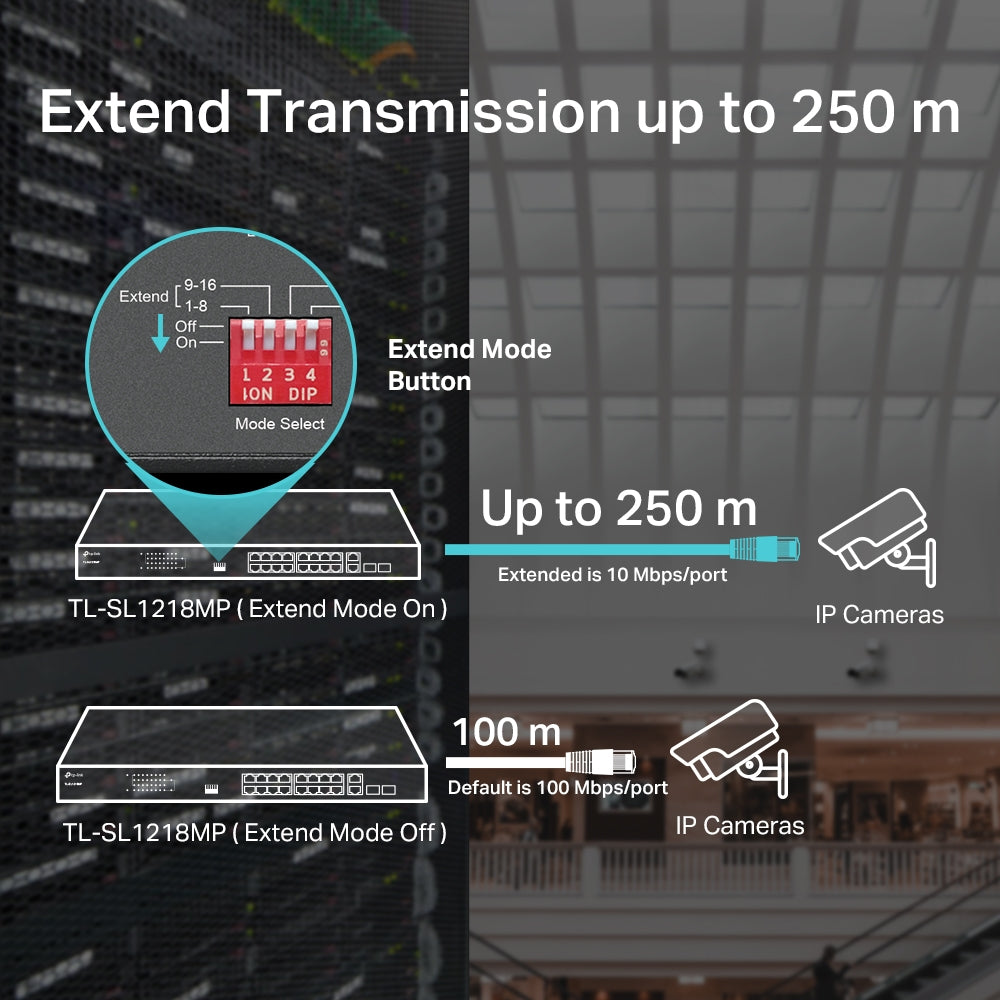

  • Supports up to 250 meters of data and power transmission in extend mode, making it ideal for IP surveillance applications.

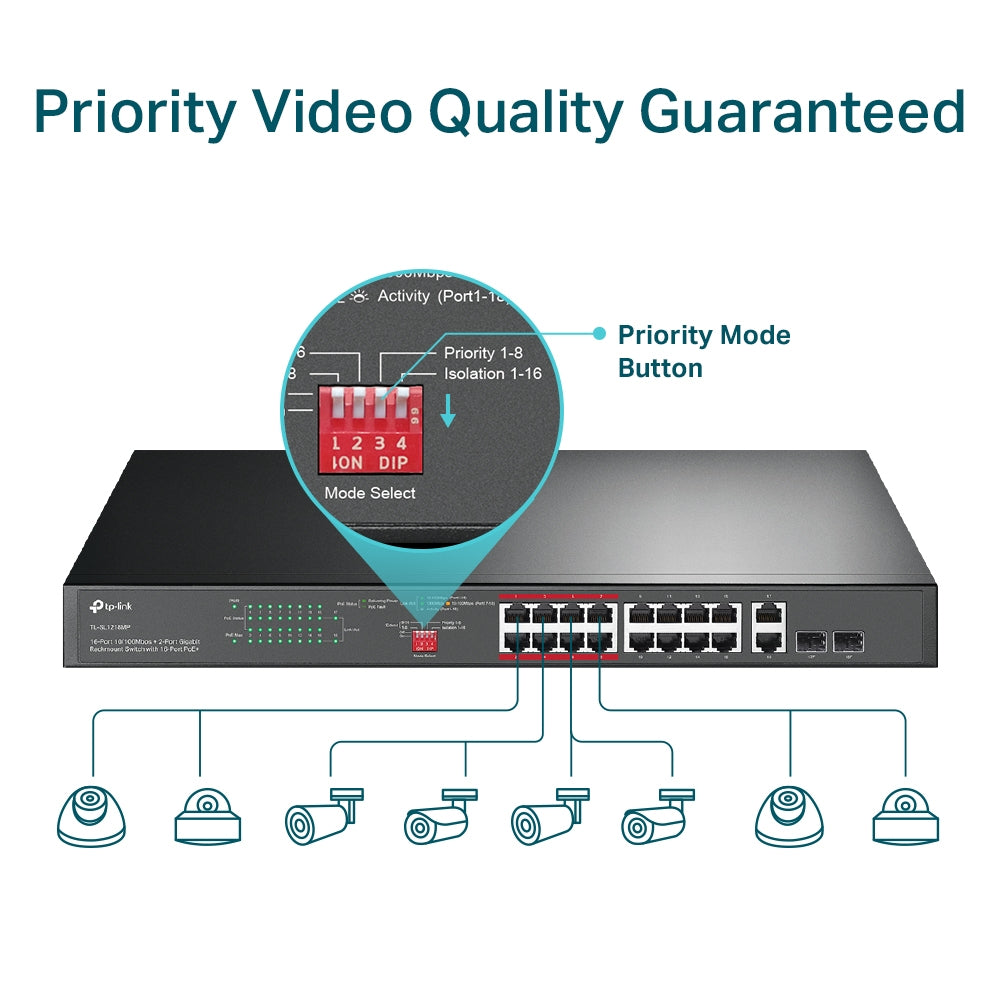

  • Priority mode for ports 1-8 ensures quality for sensitive applications like video monitoring.
• User-Friendly Design:

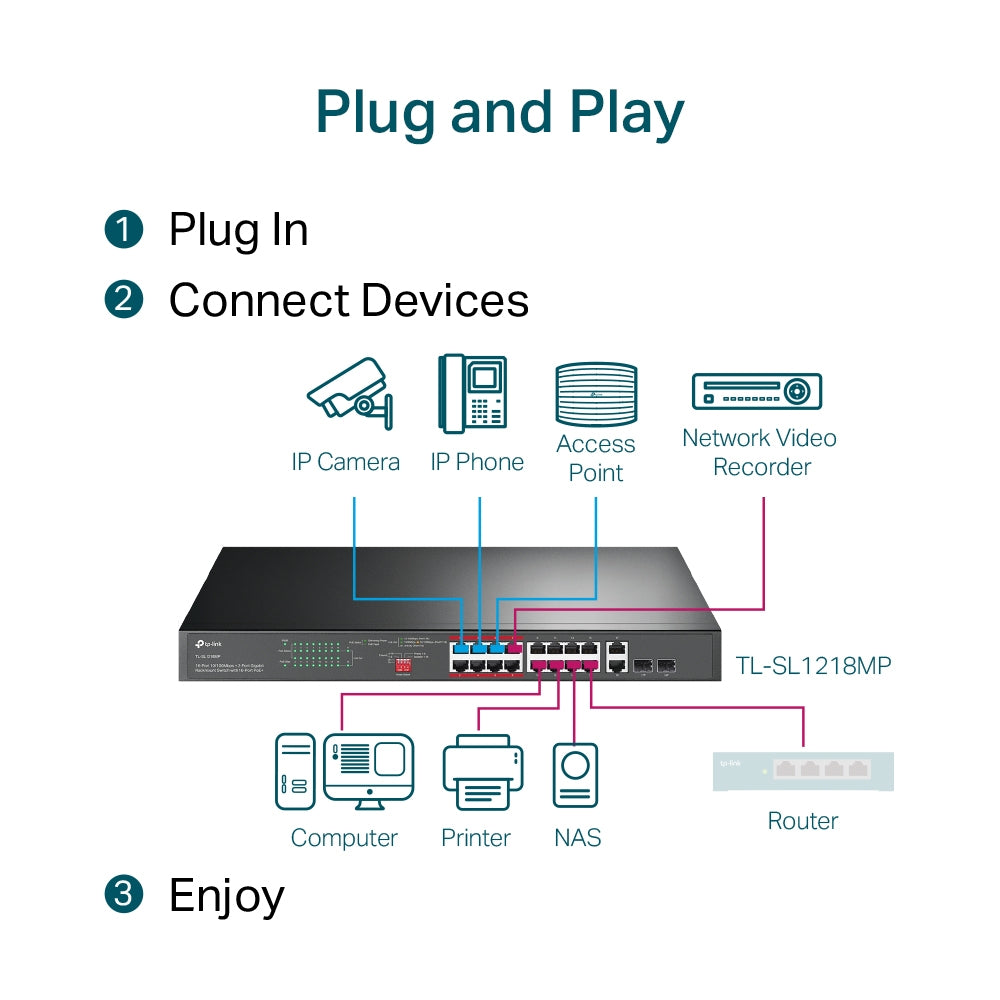

  • Plug-and-play installation with no configuration required.

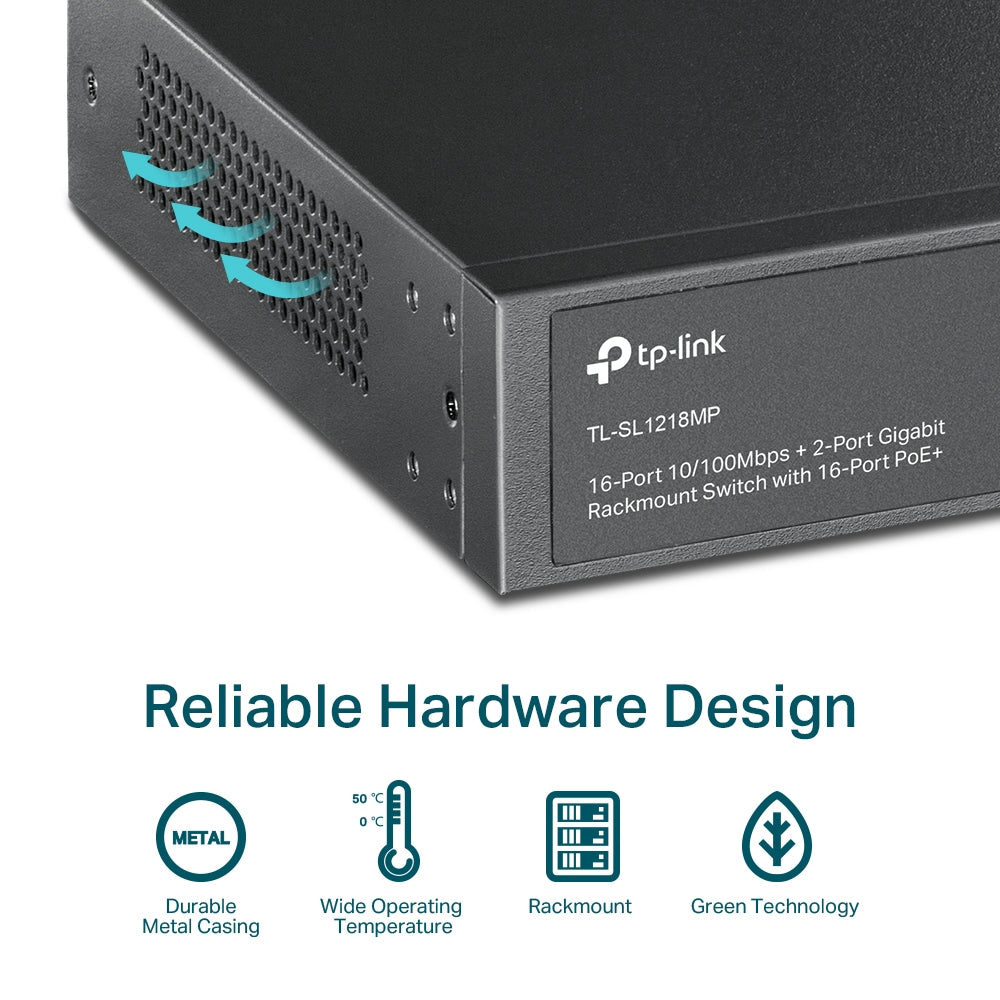

  • Compact rackmountable design suitable for various environments.

Technical Specifications

• Model: TP-Link TL-SL1218MP
• Ports:
  • 16 x PoE+ 10/100 Mbps RJ45 ports
  • 2 x Gigabit RJ45 ports
  • 2 x Combo Gigabit SFP slots

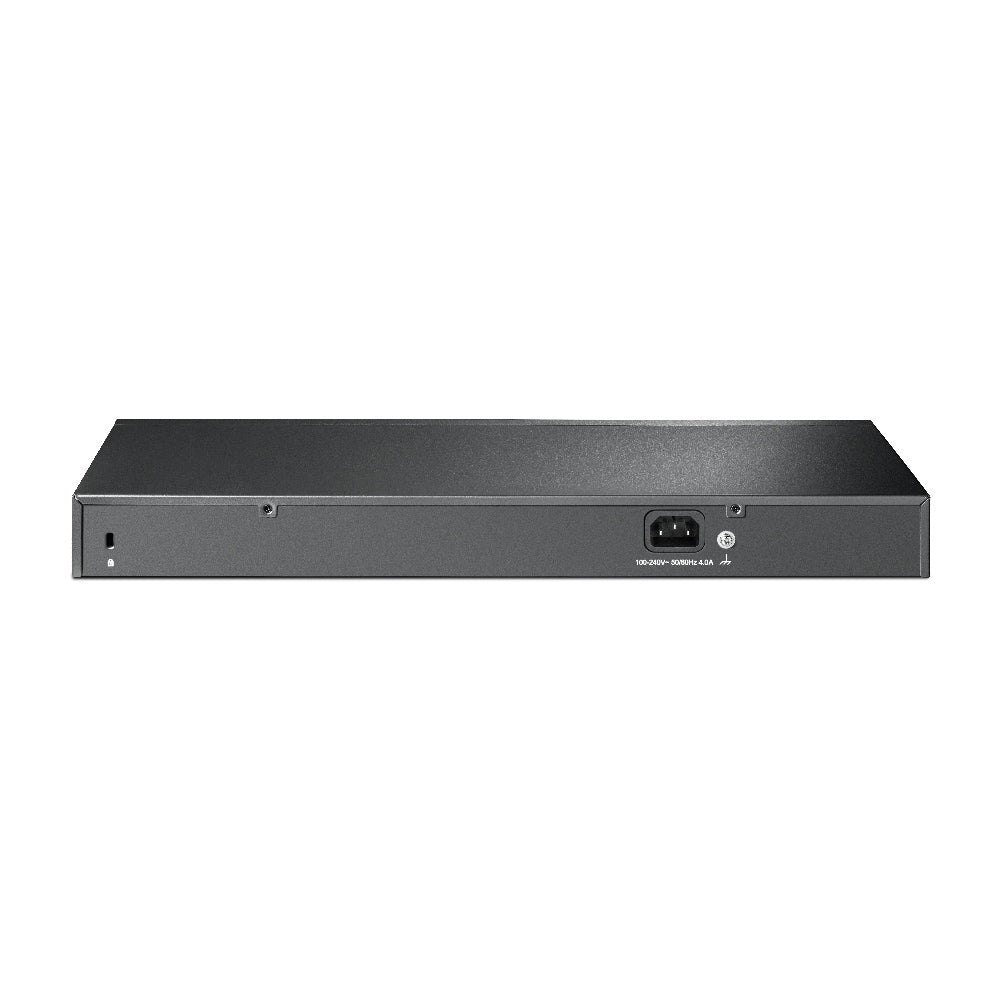

• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 49.19 W (no powered device connected) and up to 250 W (with maximum load).
• Dimensions:
  • Approximately 54 x 25 x 9 cm (21.3 x 9.8 x 3.5 in)
• Weight:
  • Approximately 3 kg (6.6 lbs)

Applications

The TL-SL1218MP is particularly well-suited for:

• IP surveillance systems requiring reliable power and data connections.
• Office environments needing VoIP phone connectivity.
• Small businesses looking for a cost-effective solution to manage network devices.
