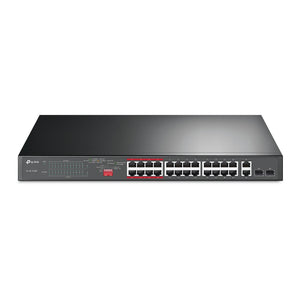

TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

The TP-Link TL-SL1226P is a 24-port unmanaged PoE+ switch designed for small to medium-sized business networks. This switch provides 24 Power over Ethernet (PoE+) ports and 2 Gigabit ports, making it ideal for powering devices like IP cameras, wireless access points, and VoIP phones while ensuring reliable data connectivity.

Key Features

• Port Configuration:
  • 24 x 10/100 Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at.
  • 2 x Gigabit RJ45 ports for high-speed uplink connections.
  • 2 x Combo Gigabit SFP slots for additional fiber connectivity.
• PoE Power Budget:

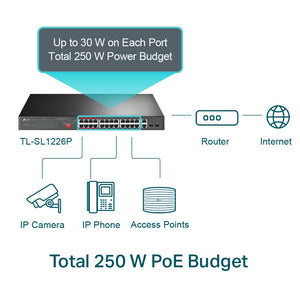

  • Each PoE port can deliver up to 30W, with a total PoE power budget of 250W, allowing multiple powered devices to be connected without the need for separate power sources.
• Performance:
  • Switching Capacity: 8.8 Gbps, ensuring efficient data handling.
  • Packet Forwarding Rate: Up to 6.54 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 8,000 MAC addresses.
  • Jumbo Frame Support: Up to 10 KB, enhancing performance for large data transfers.
• Advanced Features:

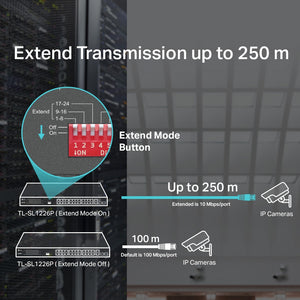

  • Supports Extend Mode, allowing up to 250 meters of data and power transmission, ideal for surveillance systems.

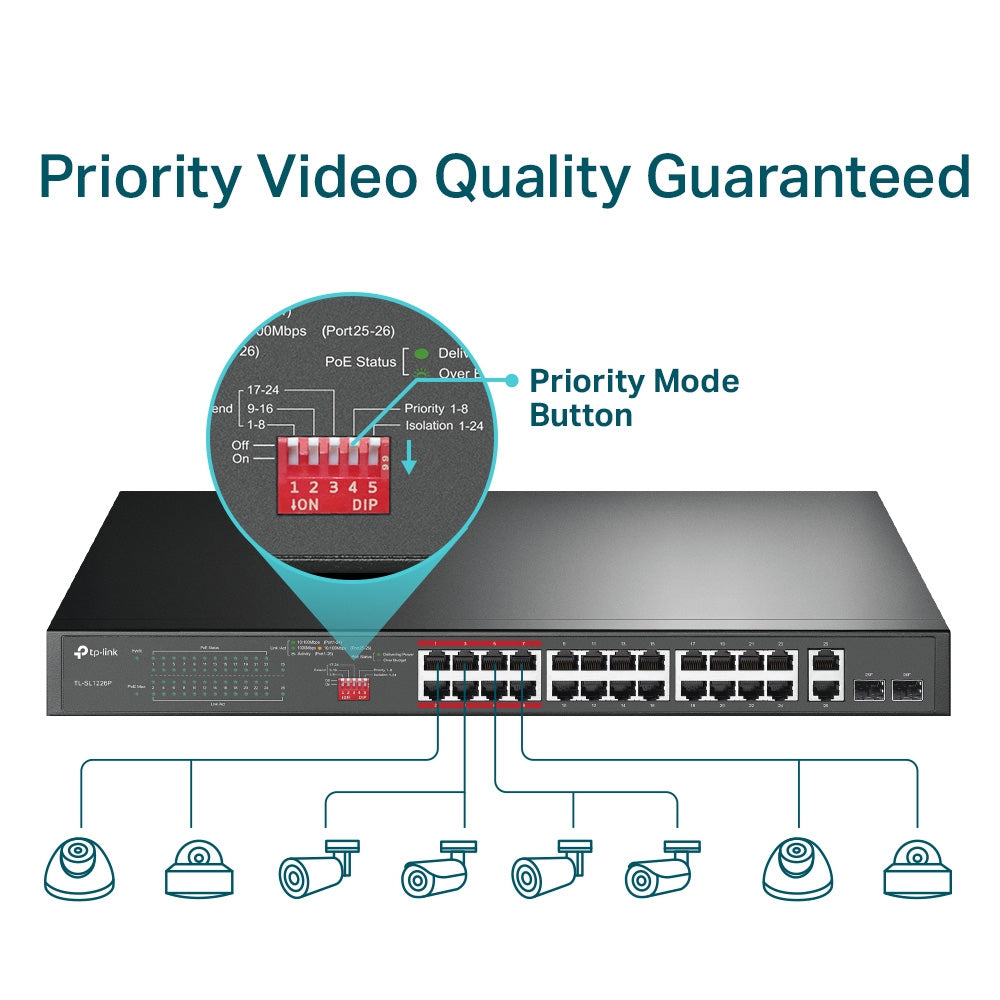

  • Priority Mode ensures high priority for ports 1–8, guaranteeing quality for sensitive applications like video monitoring.
  • Isolation Mode allows one-click client traffic separation for improved security and performance.
• User-Friendly Design:

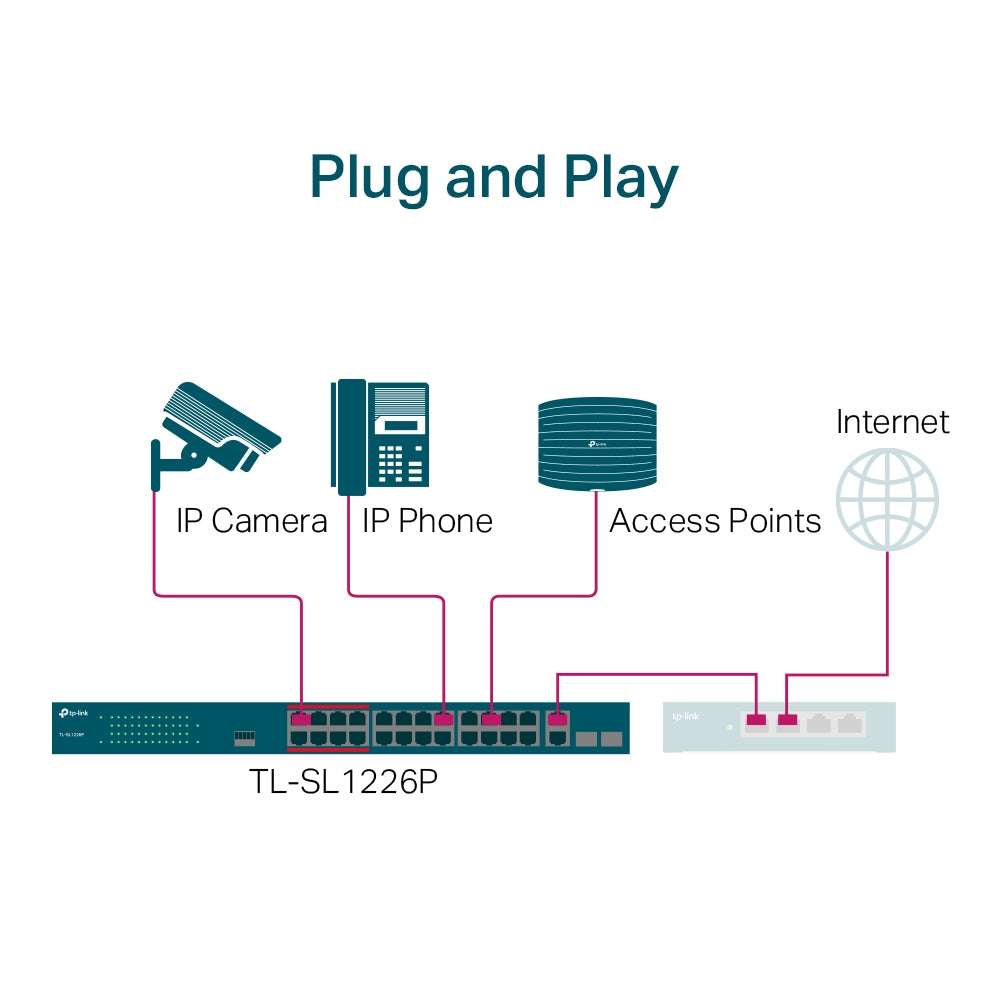

  • Plug-and-play installation with no configuration required.
  • Auto MDI/MDI-X support eliminates the need for crossover cables.
  • Rack-mountable design suitable for various environments.

Technical Specifications

• Model: TP-Link TL-SL1226P

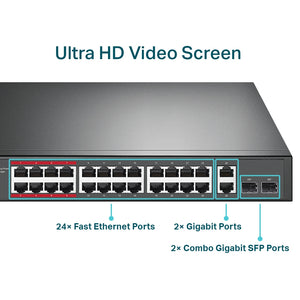

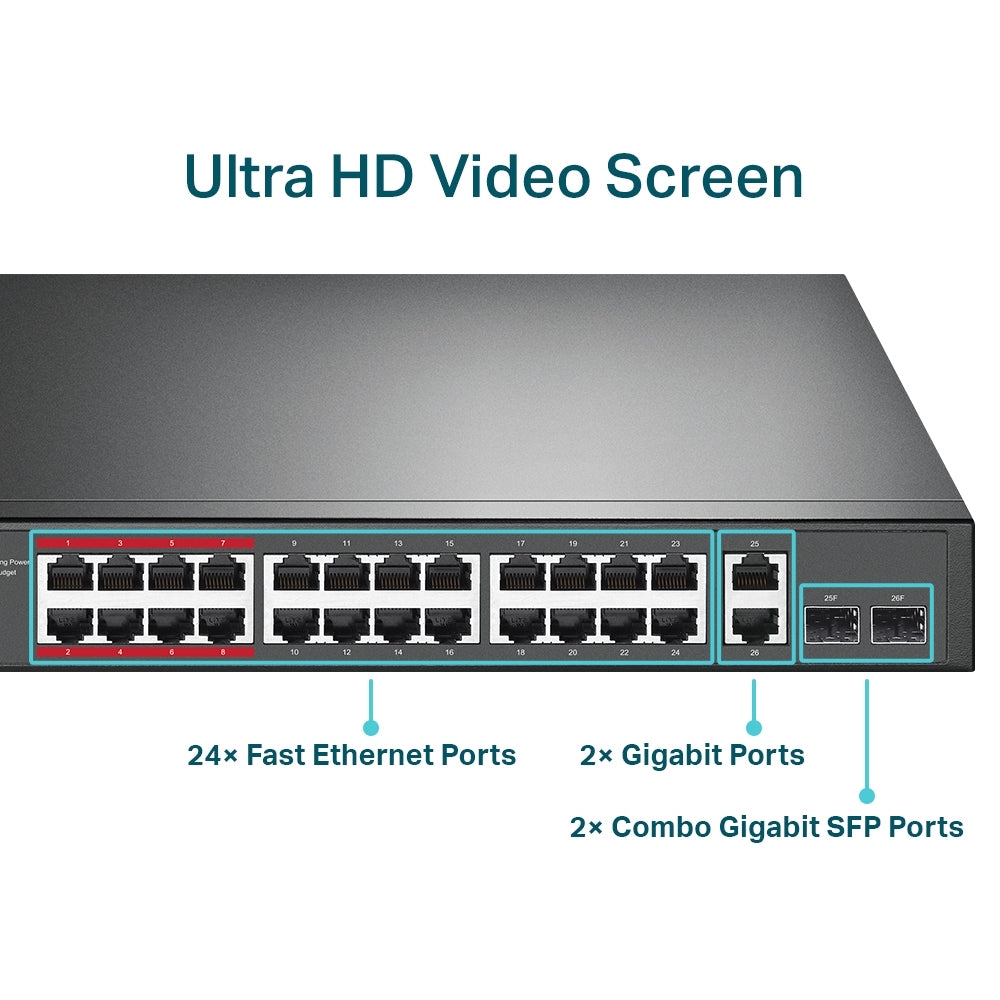

• Ports:
  • 24 x PoE+ 10/100 Mbps RJ45 ports
  • 2 x Gigabit RJ45 ports
  • 2 x Combo Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 18.32 W (no powered device connected) and up to 294 W (with maximum load).
• Dimensions:
  • Approximately 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SL1226P is particularly well-suited for:

• Powering IP cameras and wireless access points in surveillance systems.
• Connecting VoIP phones in office environments.Supporting a variety of devices in small businesses and dormitories.
