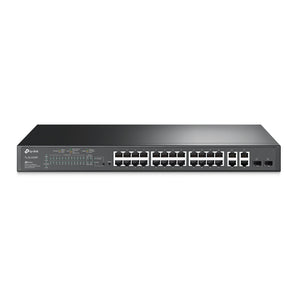

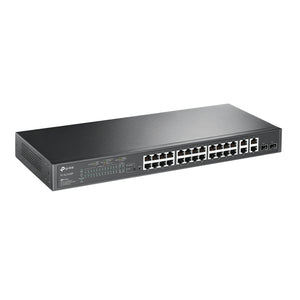

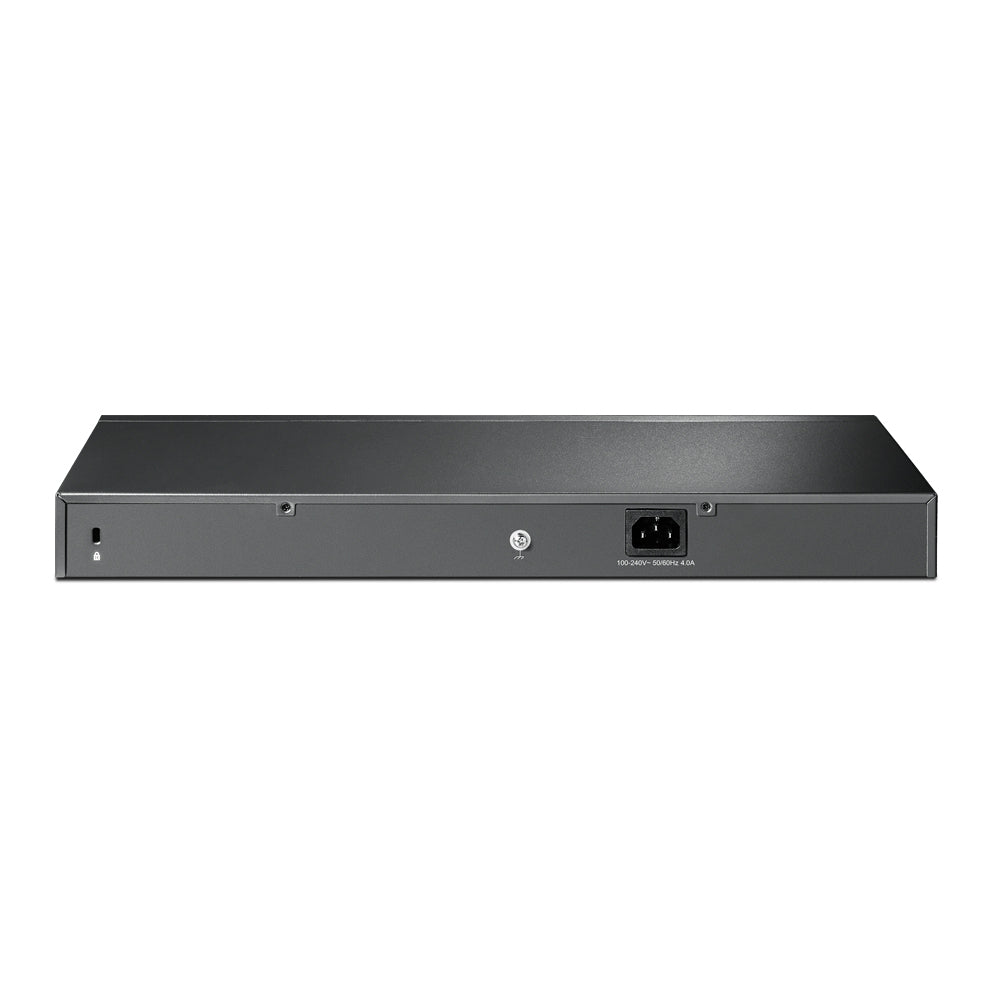

TP-Link TL-SL2428P 24-Port 10/100 Mbps + 4-Port Gigabit Smart PoE Switch

The TP-Link TL-SL2428P is a 24-port Gigabit L2+ managed switch designed for small to medium-sized business networks. It features 24 Power over Ethernet (PoE+) ports and 4 additional Gigabit ports, providing flexibility for powering devices such as IP cameras, VoIP phones, and wireless access points.

Key Features

• Port Configuration:
  • 24 x 10/100 Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at.
  • 4 x 10/100/1000 Mbps RJ45 ports for high-speed uplink connections.
  • 2 x Combo Gigabit SFP slots for fiber uplink options.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 250W, allowing multiple powered devices to be connected without the need for separate power sources.
• Performance:
  • Switching Capacity: 12.8 Gbps, ensuring efficient data handling.
  • Packet Forwarding Rate: Up to 9.5 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 8,000 MAC addresses.
  • Jumbo Frame Support: Up to 9 KB, enhancing performance for large data transfers.
• Advanced Management Features:
  • Supports essential Layer 2 features such as VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Managed through a web interface, CLI, and SNMP for comprehensive control and monitoring.
• Security Features:
  • Comprehensive security options including Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Fan-assisted cooling design ensures efficient heat dissipation while maintaining quiet operation.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SL2428P
• Ports:
  • 24 x PoE+ 10/100 Mbps RJ45 ports
  • 4 x Gigabit RJ45 ports
  • 2 x Combo Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 18.8 W (no powered device connected) and up to 286.7 W (with maximum load).
• Dimensions:
  • Approximately 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SL2428P is particularly well-suited for:

• Powering IP cameras and wireless access points in surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting various devices in small businesses or educational institutions.
