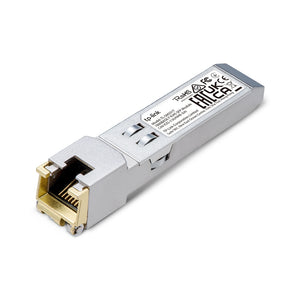

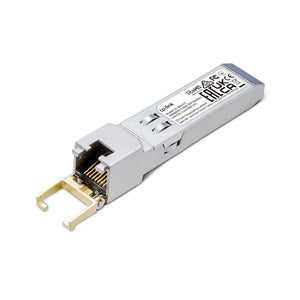

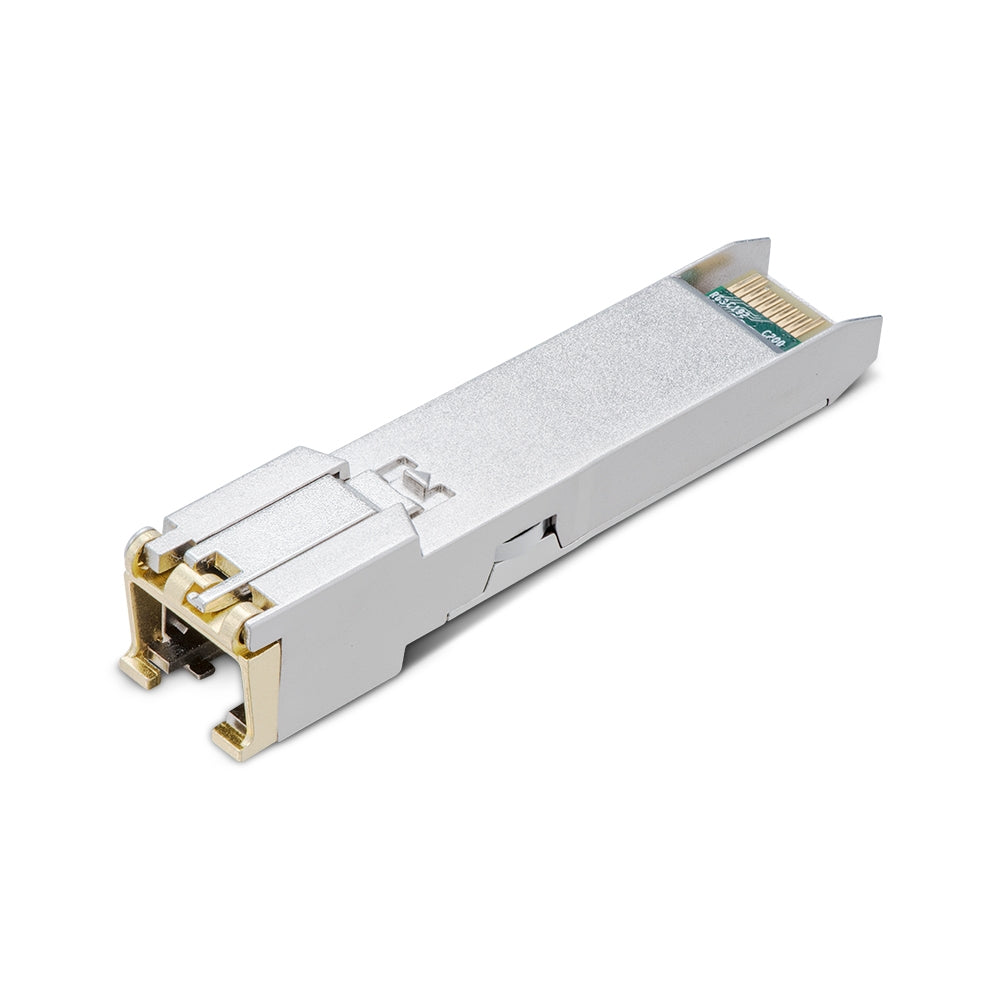

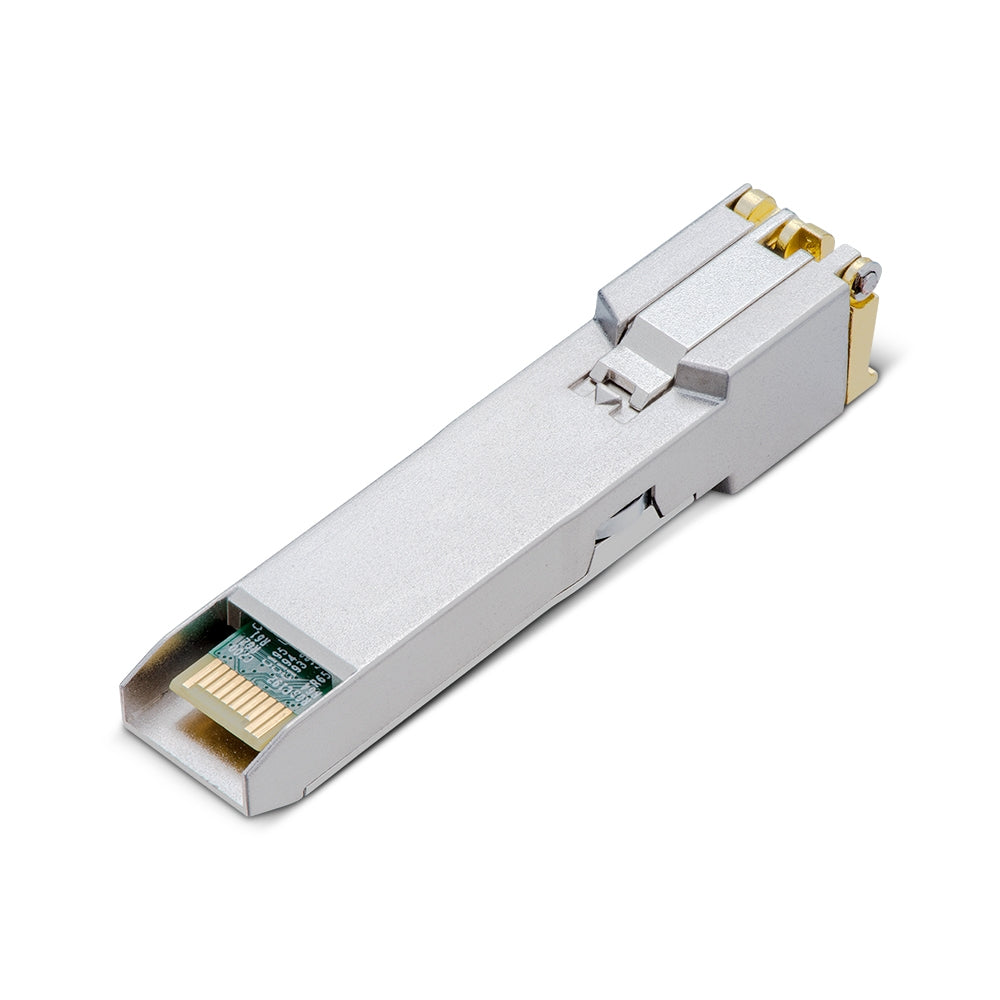

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module

The TP-Link TL-SM331T is a 1000BASE-T RJ45 SFP module designed to provide high-speed Ethernet connectivity over copper cabling. This module allows for seamless integration into networking equipment, enabling users to extend their network reach up to 100 meters using standard Ethernet cables.

Key Features

• Data Rate:
  • Supports a data rate of 1.25 Gbps, ensuring fast and reliable data transmission.
• Transmission Distance:
  • Capable of transmitting data up to 100 meters over Cat 5e or higher twisted pair cables.

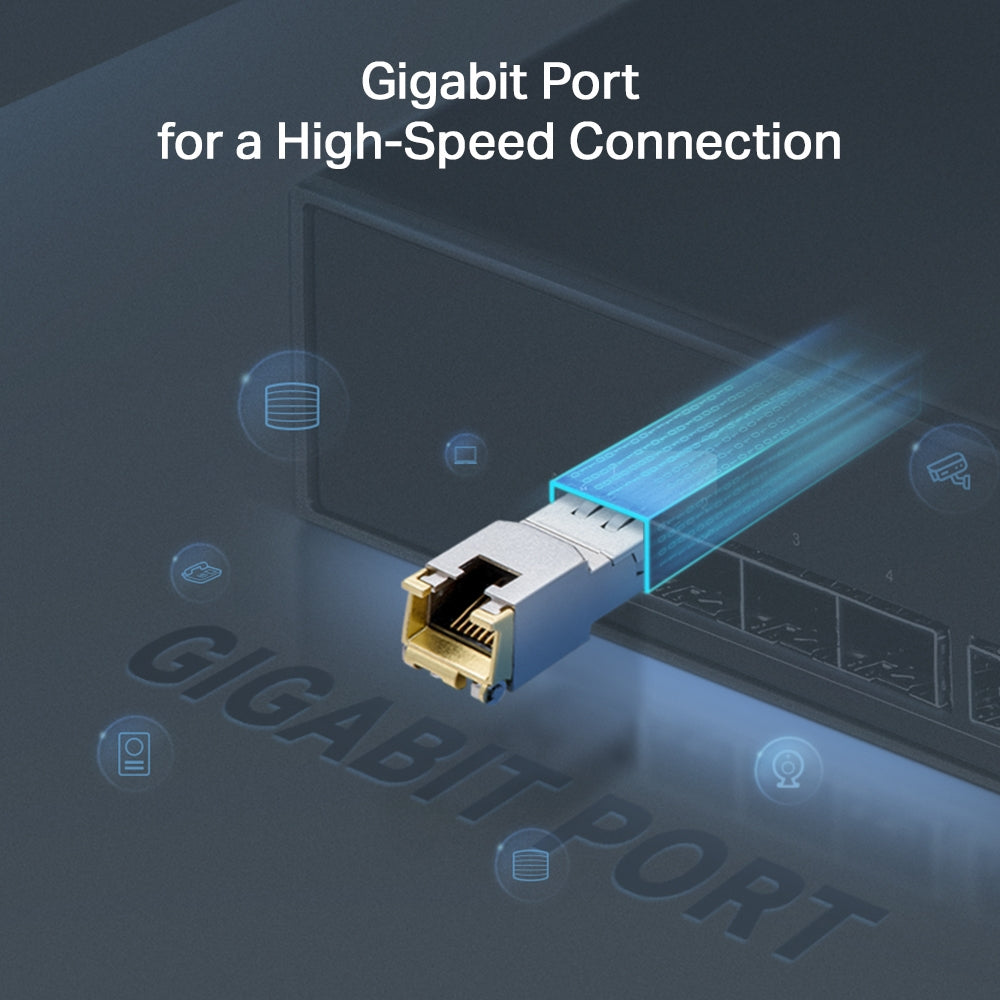

• Port Type:
  • Features a single RJ45 port, providing a straightforward connection to network devices.

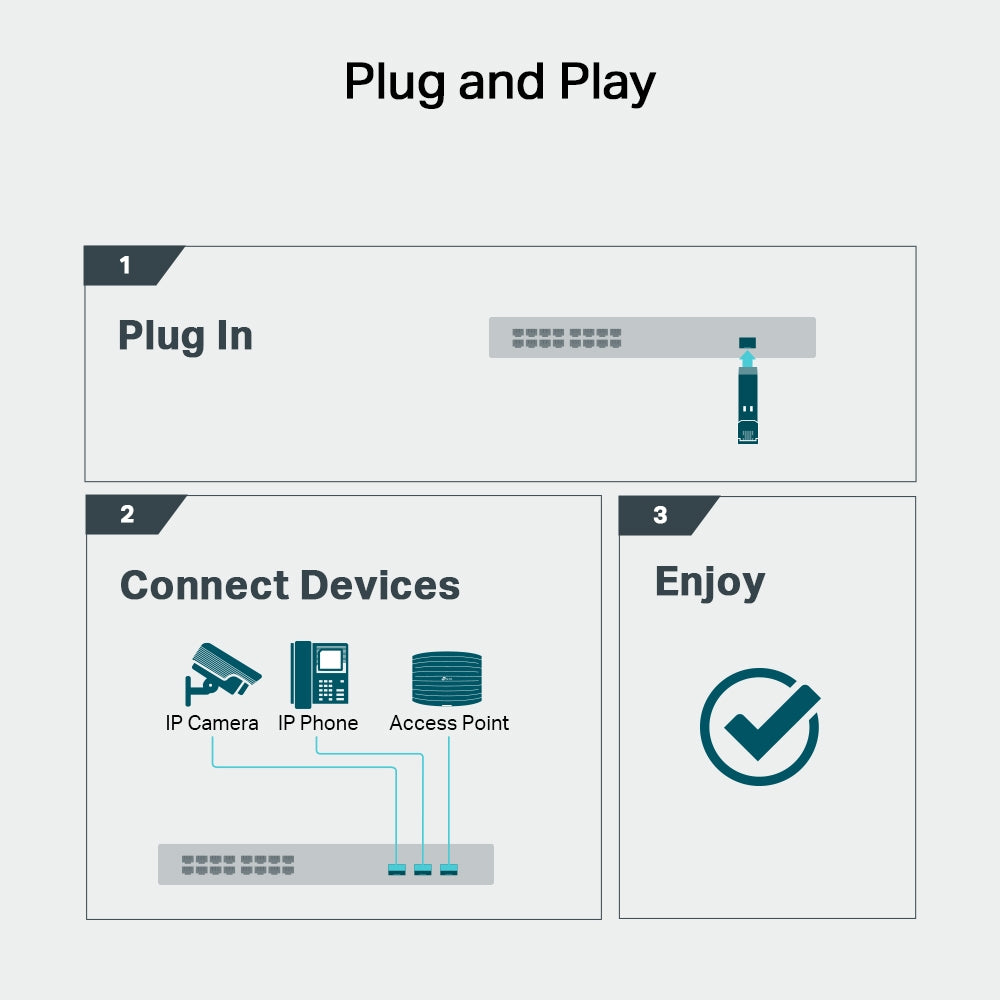

• Plug and Play:
  • Designed for easy deployment with a plug-and-play setup, eliminating the need for complex configurations or technician assistance.

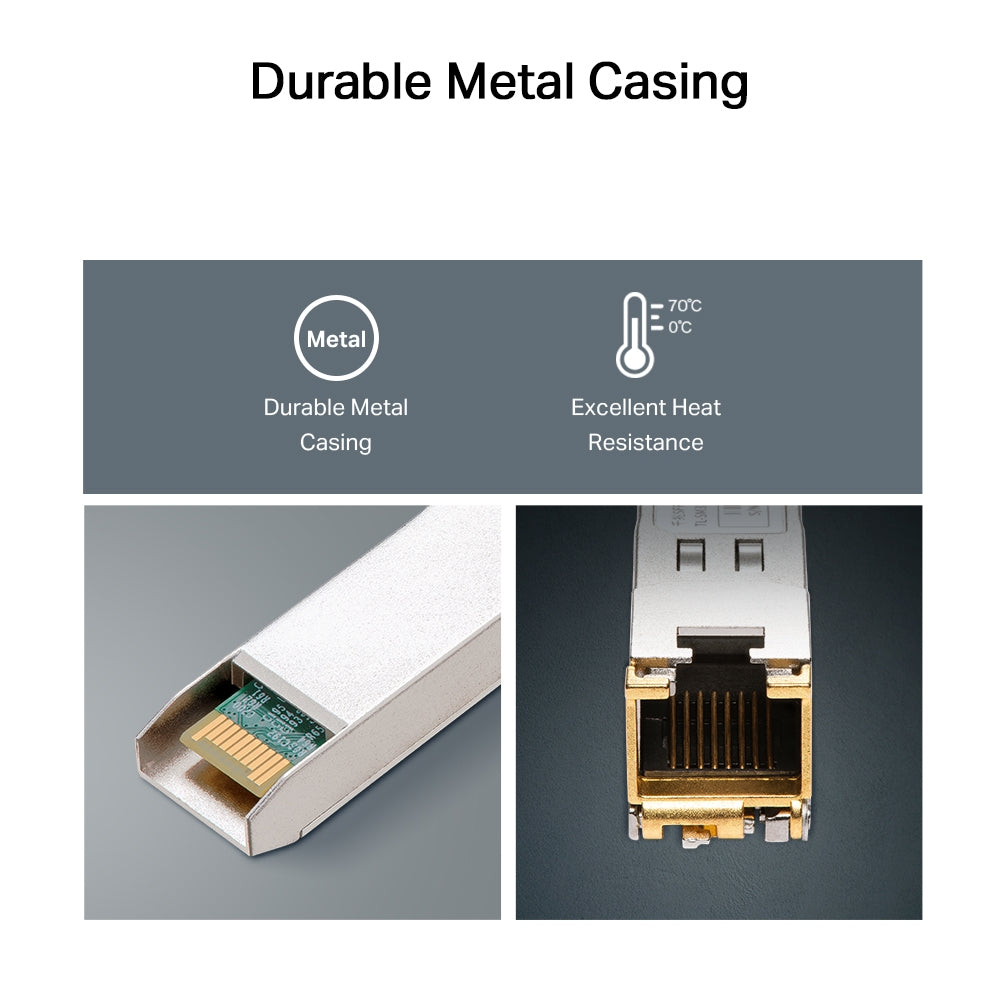

• Durable Metal Casing:
  • Constructed with a robust metal casing that ensures durability and reliability in various environments, while also minimizing electromagnetic interference (EMI).

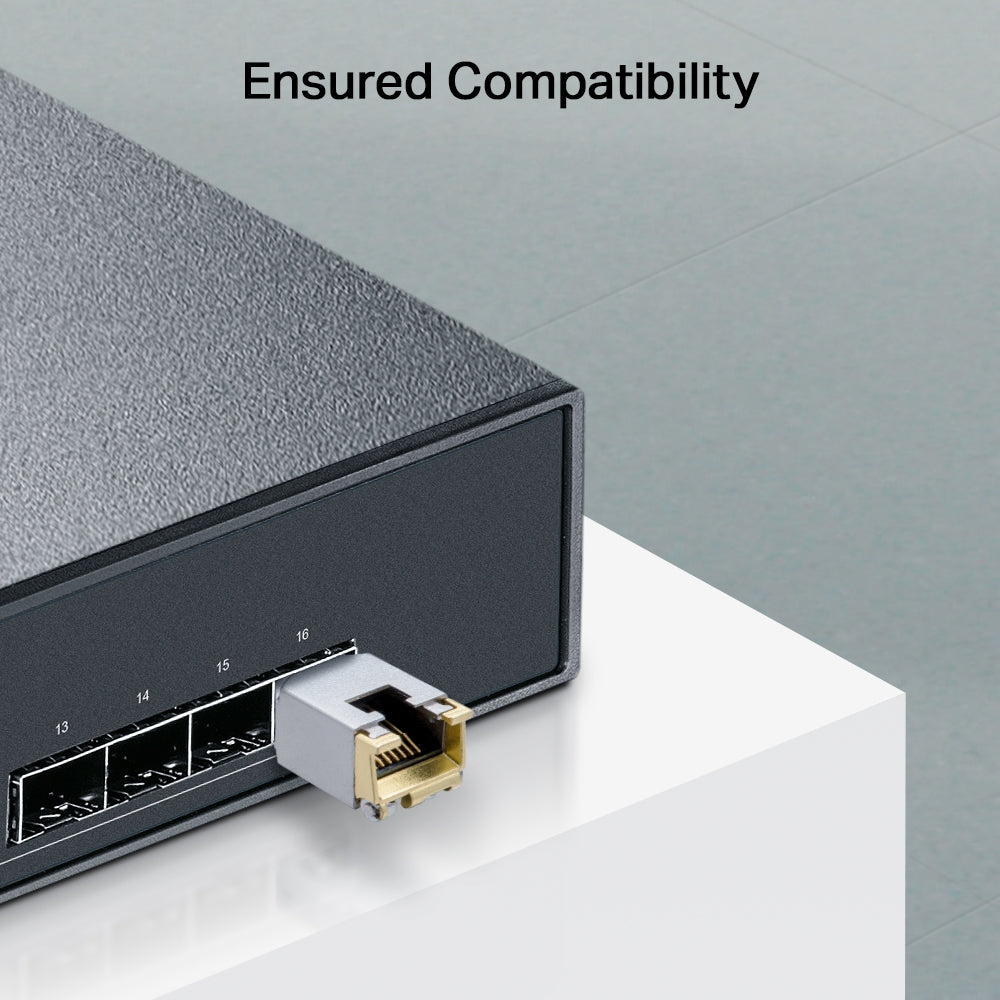

• Compatibility:
  • Fully compatible with various networking equipment from different manufacturers, including TP-Link, Cisco, Huawei, D-Link, Netgear, and MikroTik.

Technical Specifications

• Model: TL-SM331T
• Standards and Protocols: IEEE 802.3-2002
• Power Supply: 3.3V
• Max Cable Length: 100m (Cat 5e or above)
• Data Rate: 1.25 Gbps
• Port Type: 1 x 1000 Mbps RJ45 Port
• Safety & Emission Certifications: FCC, CE
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimensions: Approximately 67.4 x 13.75 x 13.8 mm (2.65 x 0.54 x 0.54 inches)
• Weight: Approximately 0.044 lbs (20 g)

Applications

The TL-SM331T is ideal for:

• Connecting network devices such as switches, routers, and access points in environments where copper cabling is preferred.
• Extending network connections in office buildings, data centers, and other commercial settings.
• Integrating seamlessly into existing network infrastructure without requiring additional configuration.
