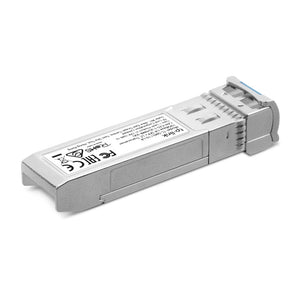

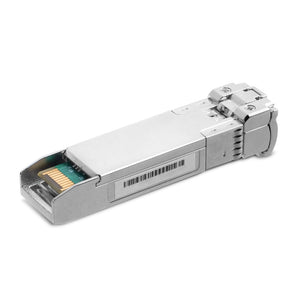

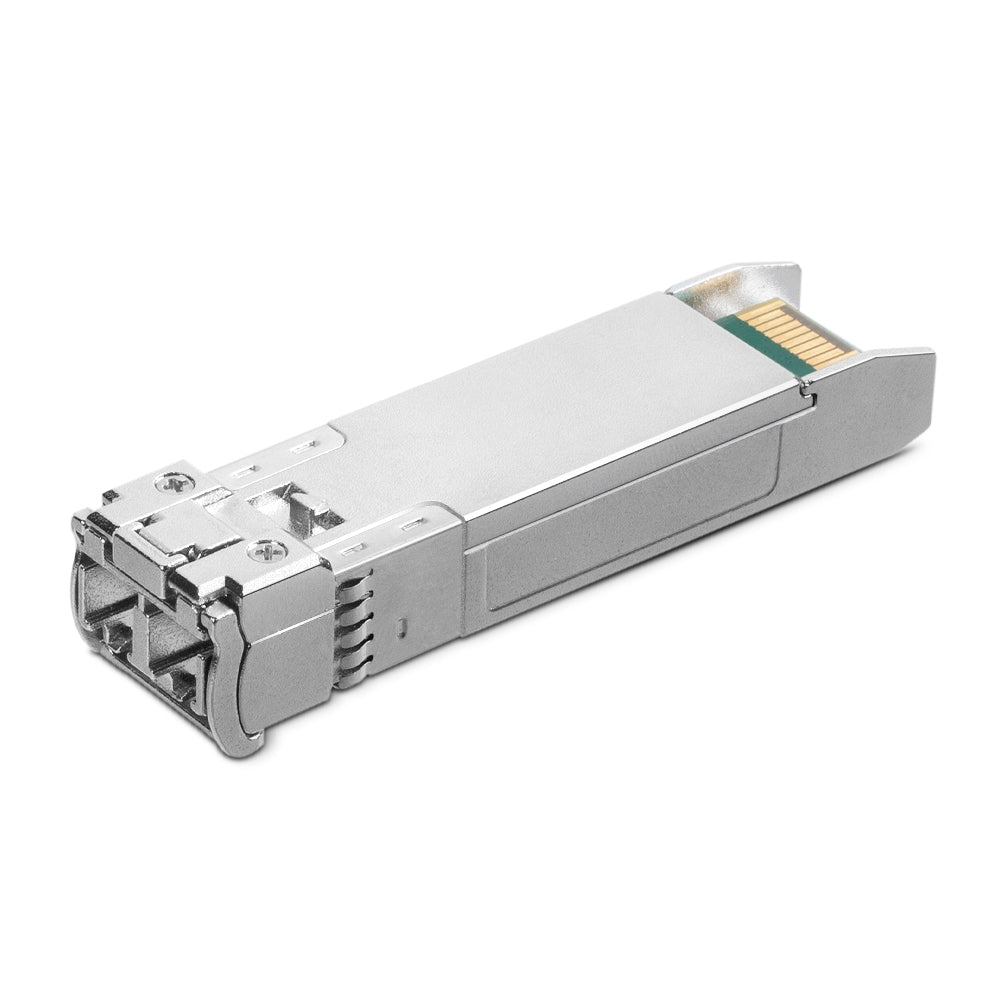

TP-Link TL-SM5110LR 10GBASE-LR SFP+ Transceiver

The TP-Link TL-SM5110LR is a 10GBASE-LR SFP+ transceiver designed for high-performance networking applications. This module is ideal for extending 10 Gigabit Ethernet connections over long distances using single-mode fiber (SMF) cabling.

Key Features

• Data Rate:
  • Supports data rates from 1.25 Gbps up to 10.31 Gbps, making it versatile for various applications.
• Transmission Distance:
  • Capable of transmitting data up to 10 kilometers (6.2 miles) over 9/125 µm single-mode fiber, providing a reliable solution for long-distance networking.
• Wavelength:
  • Operates at a wavelength of 1310 nm for both transmission and reception, ensuring efficient signal propagation.
• Connector Type:
  • Utilizes a LC duplex connector, which is standard for fiber optic connections, ensuring compatibility with most networking equipment.
• Digital Diagnostic Monitoring (DDM):
  • Supports DDM, allowing users to monitor the transceiver's operational status and performance metrics in real-time.
• Compatibility:
  • Compatible with TP-Link switches and other devices that support SFP+ modules, including models like the TL-SG3428X and TL-SG3428XMP.
• Operating Conditions:
  • Designed for standard operating temperatures ranging from 0°C to 70°C (32°F to 158°F), suitable for typical data center environments.

Technical Specifications

• Model: TL-SM5110LR
• Standards and Protocols: IEEE 802.3ae, TCP/IP
• Power Supply: +3.3V
• Maximum Cable Length: 10 km (over single-mode fiber)
• Data Rate: Up to 10 Gbps
• Port Type: LC Duplex
• Safety and Emission Certifications: CE, FCC
• Dimensions: Approximately 56.7 x 13.9 x 10.35 mm (2.2 x 0.5 x 0.4 in)

Applications

The TL-SM5110LR is particularly well-suited for:

• Connecting network devices in enterprise environments where long-distance connections are required.
• Extending network reach in data centers, campuses, and large office buildings.
• Supporting high-bandwidth applications such as video streaming, cloud computing, and data backup.
