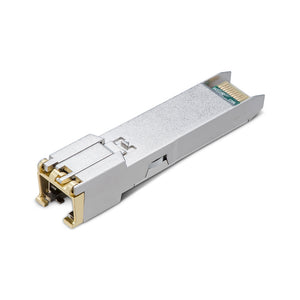

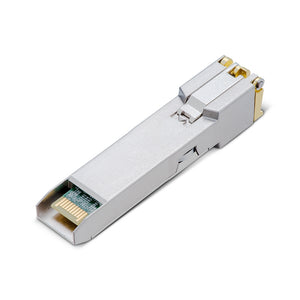

TP-Link TL-SM5310-T 10GBASE-T RJ45 SFP+ Module

The TP-Link TL-SM5310-T is a 10GBASE-T RJ45 SFP+ transceiver module designed to facilitate high-speed Ethernet connectivity. This module allows for seamless connections between SFP+ interfaces and RJ45 ports, making it ideal for users needing to extend their network with copper cabling.

Key Features

• Data Rate:
  • Supports data rates of 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps, providing flexibility for various networking needs.
• Transmission Distance:
  • Capable of transmitting data up to 30 meters at 10 Gbps using Cat 6a or higher cabling. For lower speeds, it can reach up to 100 meters using Cat 5e or higher cables.
• Hot-Pluggable:
  • The module is designed to be hot-swappable, allowing for easy installation and replacement without powering down the switch.
• Durable Design:
  • Constructed with a fully metallic enclosure that minimizes electromagnetic interference (EMI), ensuring reliable performance in various environments.
• Digital Diagnostic Monitoring (DDM):
  • Supports DDM, enabling monitoring of the module's operational status, including temperature and voltage.
• Compatibility:
  • Compatible with a wide range of networking equipment from different manufacturers, including TP-Link devices.

Technical Specifications

• Model: TL-SM5310-T
• Standards and Protocols: IEEE 802.3, 802.3ab, 802.3bz, 802.3an
• Power Supply: 3.3V
• Max Cable Length:
  • 10GBASE-T: Up to 30m (Cat 6a or above)
  • 1000BASE-T/2.5GBASE-T/5GBASE-T: Up to 100m (Cat 5e or above)
  • 100BASE-TX: Up to 100m (Cat 5 or above)
• Data Rate: Up to 10.3 Gbps
• Port Type: 1 x RJ45 Port
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimensions: Approximately 67.4 x 13.75 x 13.8 mm (2.65 x 0.54 x 0.54 in)
• Certifications: FCC, CE, RoHS

Applications

The TL-SM5310-T is suitable for:

• Connecting devices in enterprise environments where high-speed Ethernet connections are required.
• Extending network reach in data centers and office buildings.
• Supporting applications such as video streaming, gaming, and large data transfers.
