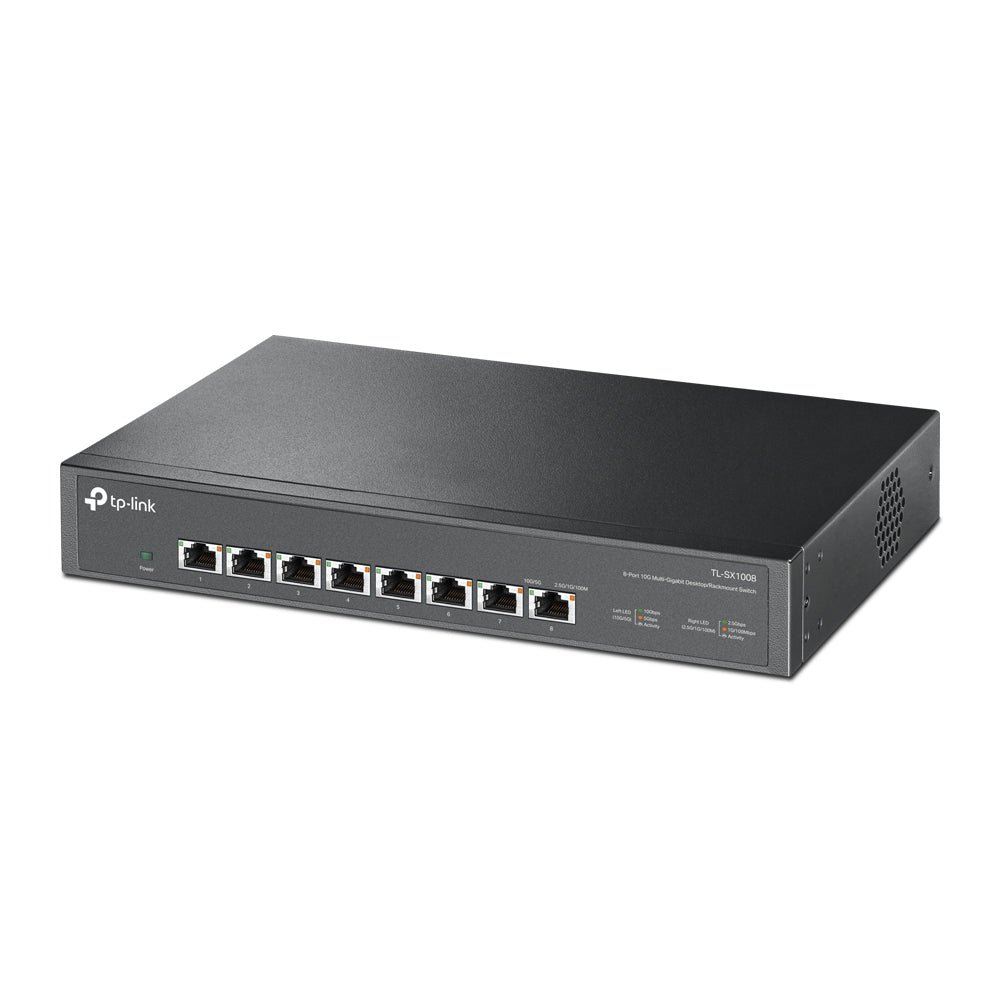

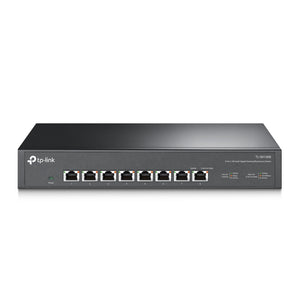

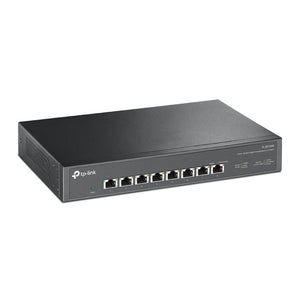

TP-Link TL-SX1008 8-Port 10G Desktop/Rackmount Switch

The TP-Link TL-SX1008 is an 8-port 10G desktop/rackmount switch designed for high-performance networking environments. It provides a robust solution for users requiring ultra-fast data transfer speeds, making it ideal for bandwidth-intensive applications such as video editing, large data transfers, and gaming.

Key Features

• Port Configuration:
  • 8 x 10G Ethernet Ports: Supports auto-negotiation for speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps.
  • Auto-MDI/MDIX: Eliminates the need for crossover cables, simplifying connectivity.
• Performance:
  • Switching Capacity: Up to 160 Gbps, ensuring efficient data handling across all ports.
  • Packet Forwarding Rate: Up to 119 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 32,000 MAC addresses.
  • Packet Buffer Memory: 2 MB with support for Jumbo Frames up to 10 KB.
• Design and Build:
  • Fan Quantity: Equipped with an intelligent fan that adjusts speed based on temperature, ensuring quiet operation.
  • Durable Metal Housing: Designed for desktop or rackmount installation, providing flexibility in various environments.
• Power Supply:

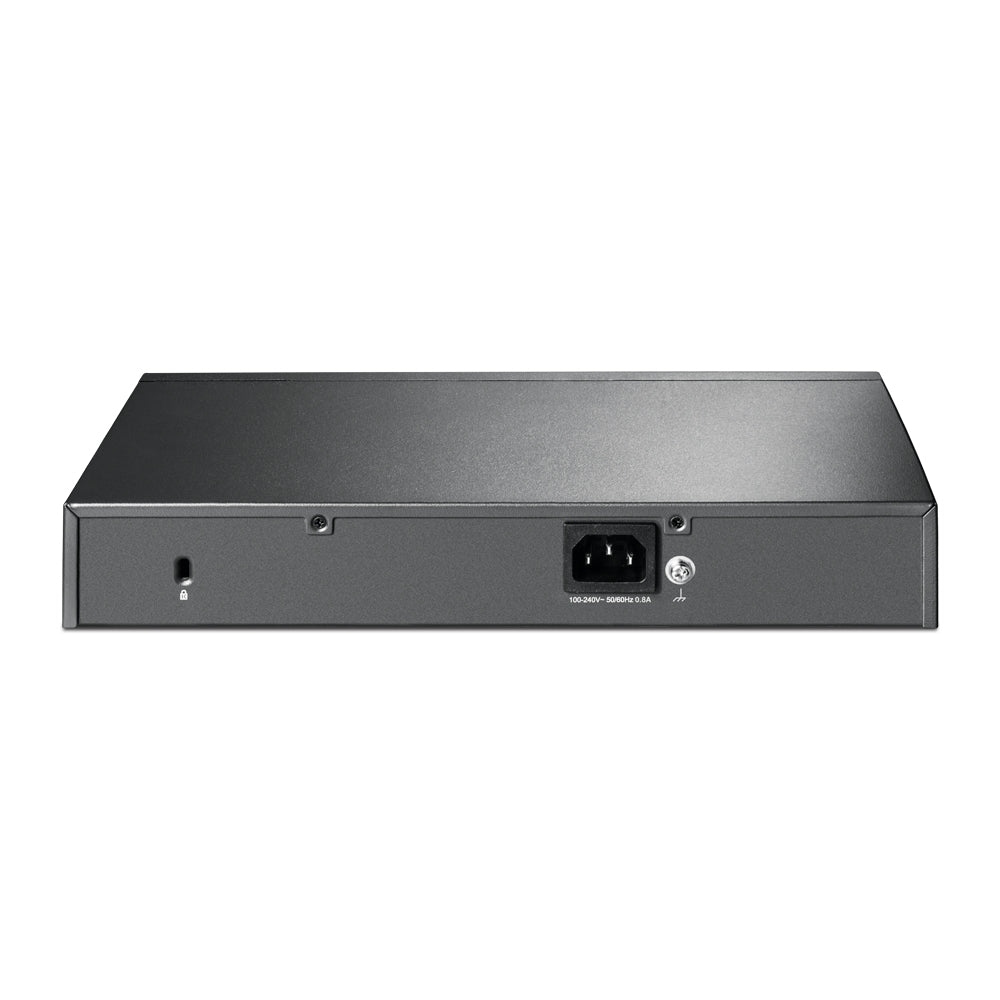

  • Input: 100–240 VAC, 50/60 Hz, with a maximum power consumption of approximately 31.2 W.
• Environmental Specifications:
  • Operating Temperature: Ranges from 0°C to +50°C (32°F to +122°F).
  • Storage Temperature: Ranges from -40°C to +70°C (-40°F to +158°F).
  • Operating Humidity: 10% to 90% RH (non-condensing).

Applications

The TL-SX1008 is particularly well-suited for:

• High-performance networking setups in offices and data centers.
• Environments requiring low-latency connections for applications like video conferencing and online gaming.
• Supporting multiple devices such as NAS systems, high-speed servers, and advanced Wi-Fi access points.
