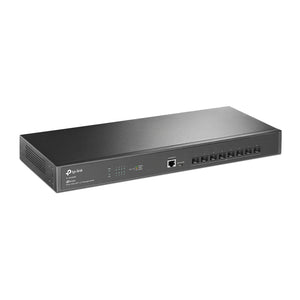

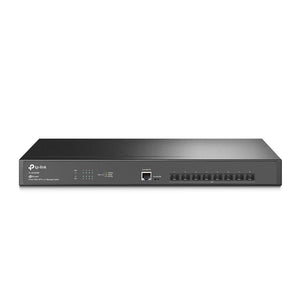

TP-Link TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch

The TP-Link TL-SX3008F is an 8-port 10G SFP+ managed switch designed to provide high-speed fiber connectivity for small to large business networks. With its robust features and performance capabilities, it is ideal for applications requiring high bandwidth, such as data centers, video editing, and high-performance computing.

Key Features

• Port Configuration:
  • 8 x 10GE SFP+ Slots: Supports ultra-fast data transfer rates, making it suitable for demanding applications.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• Performance:
  • Switching Capacity: 160 Gbps, ensuring efficient data handling across all ports.
  • Packet Forwarding Rate: Up to 119.04 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 32,000 MAC addresses.
  • Packet Buffer Memory: 16 Mbit.
  • Jumbo Frame Support: Up to 9 KB, enhancing performance for large data transfers.
• Power and Thermal Management:
  • Fanless Design: Operates silently, making it suitable for noise-sensitive environments.
  • Power Supply: Supports input voltage of 100-240 V AC, 50/60 Hz.
  • Max Power Consumption: Approximately 15.46 W (at 220 V / 50 Hz).
  • Heat Dissipation: Maximum of 52.75 BTU/hr.
• Physical Specifications:
  • Dimensions: 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in).
  • Rack-mountable design allows for flexible installation options.

Software Features

• Quality of Service (QoS):
  • Supports up to 8 priority queues, allowing for traffic prioritization based on application needs.
• VLAN Support:
  • Supports IEEE 802.1Q VLAN tagging, allowing network segmentation for improved security and performance.
• Advanced Layer 2 Features:
  • Includes features such as port mirroring, link aggregation control protocol (LACP), and static routing.
• Management Capabilities:
  • Managed via a web interface or command line interface (CLI), enabling easy configuration and monitoring.

Applications

The TL-SX3008F is particularly well-suited for:

• High-performance networking environments such as data centers and enterprise networks.
• Applications requiring low-latency connections, such as video streaming and online gaming.
• Environments where silent operation is essential, such as offices or studios.
