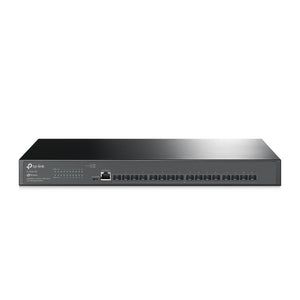

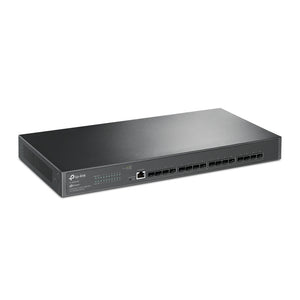

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

The TP-Link TL-SX3016F is a 16-port 10G SFP+ managed switch designed for high-performance networking in enterprise environments. With its robust features and capabilities, this switch is ideal for data centers, backbone networks, and applications requiring high-speed fiber connectivity.

Key Features

• Port Configuration:
  • 16 x 10GE SFP+ Slots: Supports ultra-fast data transfers and large bandwidth, making it suitable for demanding applications.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• Performance:
  • Switching Capacity: Up to 320 Gbps, ensuring efficient data handling across all ports.
  • Packet Forwarding Rate: Up to 238.08 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 32,000 MAC addresses.
  • Packet Buffer Memory: 24 Mbit with support for Jumbo Frames up to 9 KB.
• Advanced Management Features:
  • Supports Layer 2 and Layer 2+ features including VLANs, IGMP Snooping, QoS (Quality of Service), and link aggregation.
  • Static routing capability allows for efficient traffic management across complex networks.
  • Integrated into the Omada Software Defined Networking (SDN) platform for centralized management.
• Security Features:
  • Robust security strategies including IP-MAC-Port Binding, Access Control Lists (ACLs), and 802.1X Authentication to protect the network.
• Physical Specifications:
  • Dimensions: 440 x 220 x 44 mm (17.3 x 8.7 x 1.7 in).
  • Weight: Approximately 3.95 kg (8.7 lbs).
  • Rack-mountable design suitable for standard installations.

Power and Environmental Specifications

• Power Supply:
  • Input: 100-240 V AC, 50/60 Hz.
• Max Power Consumption:
  • Approximately 32.74 W at maximum load.
• Max Heat Dissipation:
  • Approximately 111.71 BTU/hr at maximum load.
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing.

Applications

The TL-SX3016F is particularly well-suited for:

• High-performance networking environments such as data centers and enterprise networks.
• Applications requiring low-latency connections, such as video streaming and online gaming.
• Environments where advanced network management and security are essential.
