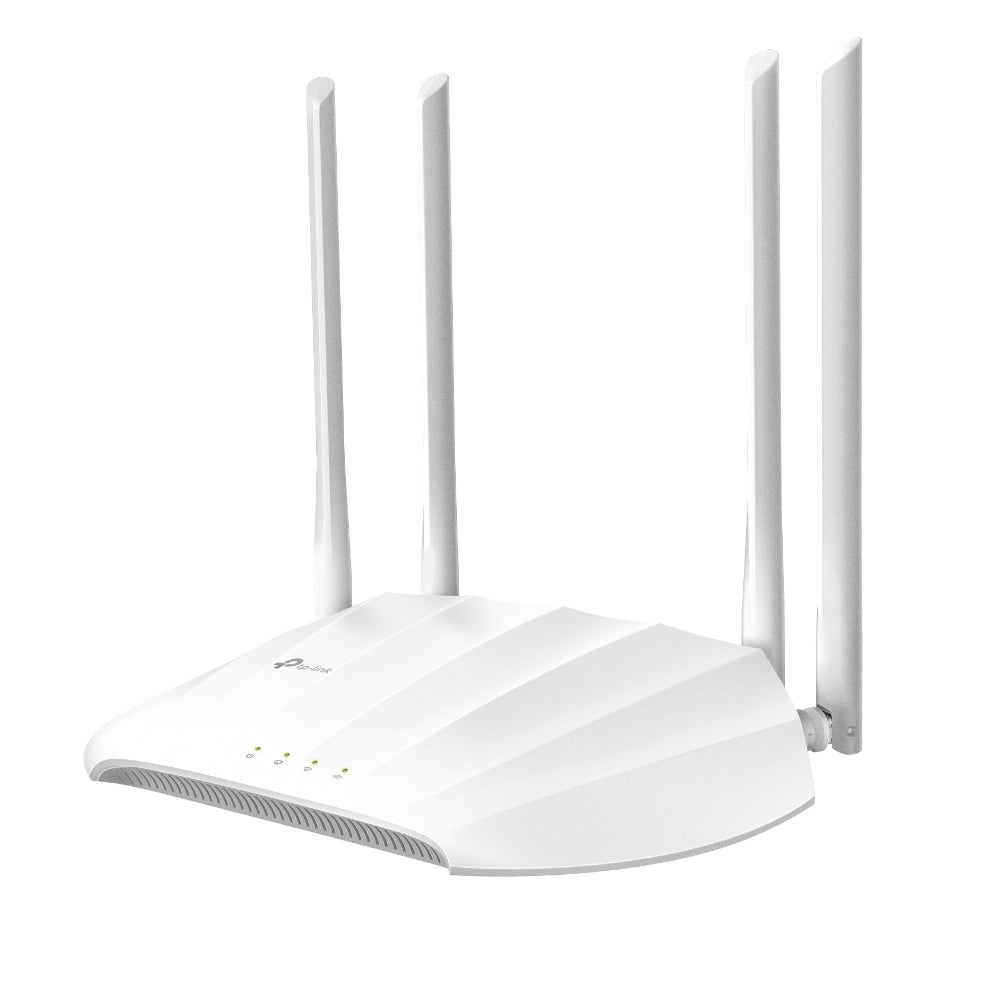

TP-Link TL-WA1201 AC1200 Wireless Access Point

The TP-Link TL-WA1201 is an AC1200 Wireless Access Point designed to provide high-speed Wi-Fi coverage for homes and offices. With dual-band capabilities, flexible deployment options, and advanced features, the TL-WA1201 enhances your network performance and connectivity.

Key Features:

• Dual-Band Wi-Fi: Supports up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, allowing for fast and reliable connections.
• Flexible Deployment: Supports Passive PoE, enabling both power and data transmission through a single Ethernet cable, simplifying installation.
• Multiple Operating Modes: Functions as an Access Point, Range Extender, Client, or Multi-SSID to meet various networking needs.
• MU-MIMO Technology: Simultaneously communicates with multiple devices for improved performance and efficiency.
• High Performance Antennas: Equipped with 4 fixed high-performance antennas that enhance signal strength and coverage.
• Captive Portal: Provides a customizable portal page for guest access, enhancing security and user experience.

Specifications:

• Wireless Standards:
  • IEEE 802.11b/g/n (2.4 GHz)
  • IEEE 802.11ac/n/a (5 GHz)
• Signal Rate:
  • 867 Mbps at 5 GHz
  • 300 Mbps at 2.4 GHz

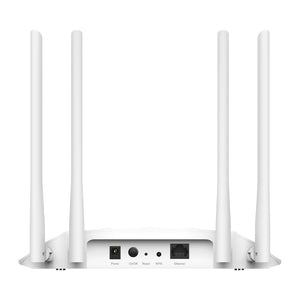

• Interface:
  • 1 x 10/100/1000 Mbps Ethernet Port (supports Passive PoE)
• Buttons:
  • Power On/Off Button
  • WPS Button
  • Reset Button
• External Power Supply:
  • 12V/1.5A
• Dimensions:
  • Approximately 8.9 x 5.7 x 1.5 inches (225 x 145.5 x 37 mm)

Additional Features:

• Wireless Security: Supports WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption for secure connections.
• Quality of Service (QoS): Ensures optimal bandwidth allocation for various applications.
• Operating Temperature:
  • Range: 0°C to 40°C (32°F to 104°F)
• Storage Temperature:
  • Range: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity:
  • Range: 10% to 90%, non-condensing

Package Contents:

• TP-Link TL-WA1201 Wireless Access Point
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
• PoE Power Injector
