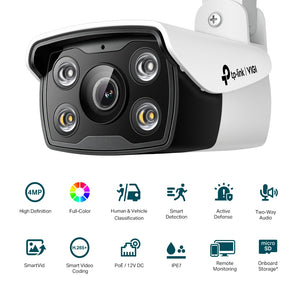

TP-Link VIGI C340 4MP Outdoor Bullet IP Camera (6mm Lens)

The TP-Link VIGI C340 is a high-performance 4MP outdoor bullet IP camera designed for effective surveillance in various outdoor environments. With its advanced features and durable construction, this camera is ideal for monitoring residential and commercial properties.

Key Features

• High Resolution:
  • Provides a resolution of 2560 x 1440 pixels (4MP), ensuring clear and detailed images for reliable surveillance.
• Lens Options:
  • Equipped with a 6mm lens, offering a horizontal field of view of approximately 62°, vertical field of view of 34°, and diagonal field of view of 75° for focused monitoring.
• Night Vision:
  • Features infrared night vision capabilities with an IR working distance of up to 30 meters, allowing for effective monitoring in low-light conditions.
• Weatherproof Design:
  • Rated IP66, this camera is resistant to dust and water, ensuring reliable performance in harsh weather conditions.
• Smart Detection Features:
  • Supports advanced detection features such as human and vehicle classification, motion detection, area intrusion detection, and line-crossing detection.
• Video Compression:

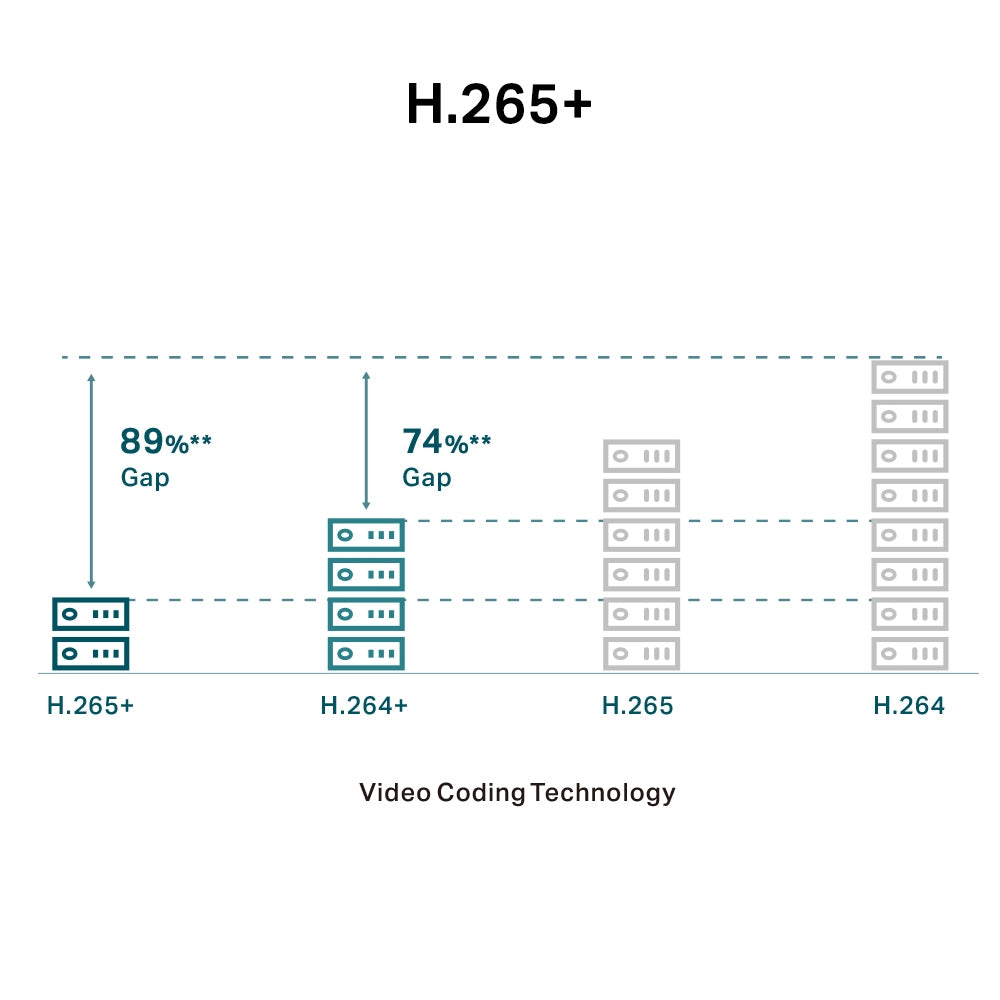

  • Utilizes H.265+ and H.264 compression standards for efficient storage and bandwidth management.

Specifications

• Camera Type: Outdoor Bullet Network Camera
• Image Sensor: 1/3" CMOS
• Resolution: 2560 x 1440 (4MP)
• Lens: 6mm (F2.0)
• Frame Rate: Up to 30 fps
• IR Night Vision: Up to 30 meters
• Weatherproof Rating: IP66
• Power Supply: PoE (802.3af/at) or 12V DC ± 5%
• Operating Temperature: -30°C to 60°C
• Dimensions: Approximately 164.9 x 87.4 x 83.4 mm
• Weight: Approximately 300g

Connectivity

• Network Interface:
  • 1 x RJ45 Ethernet port (10/100 Mbps)
• Protocols Supported:
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP

Package Contents

• TP-Link VIGI C340 Camera
• Mounting Bracket
• Waterproof Cable Attachments
• Mounting Accessories (Screws, Anchors)
• Quick Start Guide
