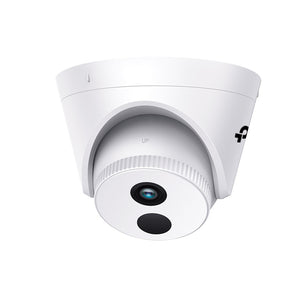

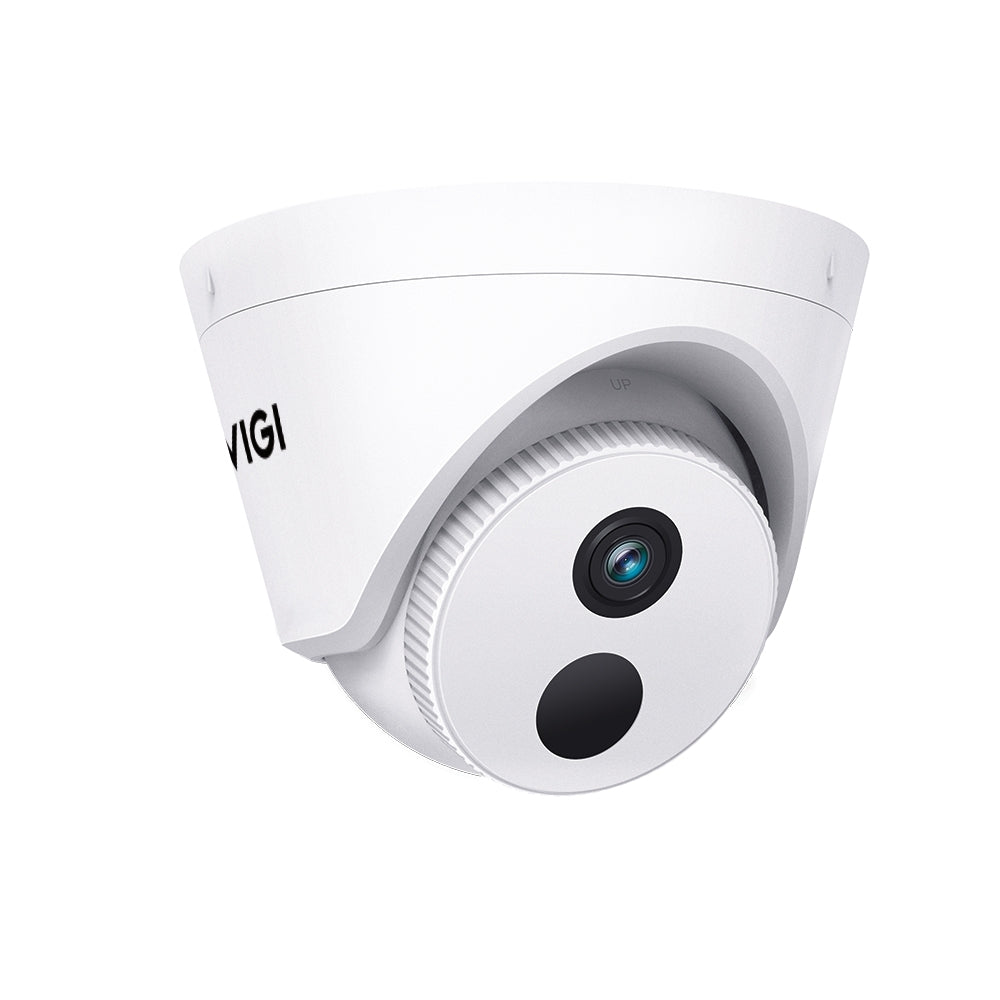

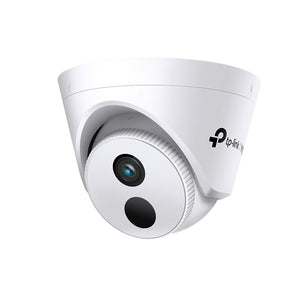

TP-Link VIGI C400HP-2.8 3MP Outdoor Turret IP Camera

The TP-Link VIGI C400HP-2.8 is a high-performance 3MP outdoor turret IP camera designed for effective surveillance in various environments. Its advanced features and durable construction make it ideal for monitoring residential and commercial properties.

Key Features

• High Resolution:
  • Delivers a resolution of 2304 x 1296 pixels, providing clear and detailed images for reliable surveillance.
• Lens Options:
  • Equipped with a 2.8mm lens, offering a horizontal field of view of approximately 97.8°, vertical field of view of 52.9°, and diagonal field of view of 117.9° for comprehensive area coverage.
• Night Vision:
  • Features infrared night vision capabilities with an IR working distance of up to 30 meters, allowing for effective monitoring in low-light conditions.
• Weatherproof Design:
  • Rated IP67, this camera is resistant to dust and water, ensuring reliable performance in harsh weather conditions.
• Smart Detection Features:
  • Supports motion detection, area intrusion detection, and line-crossing detection, enhancing security monitoring capabilities.
• Video Compression:
  • Utilizes H.265+ and H.264 compression standards for efficient storage and bandwidth management.

Specifications

• Camera Type: Outdoor Turret Network Camera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 2304 x 1296 (3MP)
• Lens: 2.8mm (F2.0)
• Frame Rate: Up to 30 fps
• IR Night Vision: Up to 30 meters
• Weatherproof Rating: IP67
• Power Supply: PoE (802.3af/at) or 12V DC ± 5%
• Operating Temperature: -30°C to 60°C
• Dimensions: 123 x 123 x 83 mm
• Weight: Approximately 195g

Connectivity

• Network Interface:
  • 1 x RJ45 Ethernet port (10/100 Mbps)
• Protocols Supported:
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS

Package Contents

• TP-Link VIGI C400HP-2.8 Camera
• Mounting Bracket
• Waterproof Cable Attachments
• Mounting Accessories (Screws, Anchors)
• Quick Start Guide
