TP-Link XC220-G3 AC1200 Wireless XPON Router

The TP-Link XC220-G3 is a high-speed AC1200 Wireless XPON Router designed to provide seamless fiber connectivity. Supporting both EPON and GPON standards, this router delivers robust dual-band Wi-Fi, making it an ideal choice for users seeking reliable internet and integrated voice services.

Key Features

• Superfast Dual Band Wi-Fi:
  • Achieves speeds of up to 1.2 Gbps, with 300 Mbps on the 2.4GHz band and 867 Mbps on the 5GHz band, enabling fast and stable connections for various devices.
• XPON Dual Modes:
  • Supports flexible fiber internet access through both GPON and EPON standards, ensuring compatibility with different service providers.
• Full Gigabit Ports:
  • Equipped with 2 Gigabit Ethernet ports, providing wired connections that are up to 10× faster than standard Ethernet for lightning-fast performance.
• EasyMesh Compatible:
  • Supports EasyMesh technology, allowing for whole-home Wi-Fi coverage by connecting with other compatible mesh devices.
• Smooth IPTV Support:
  • Optimizes IPTV streaming with features like IGMP Proxy/Snooping, Bridge, and Tag VLAN.
• Enhanced Security:
  • Protects your network with advanced security features including firewalls and the latest WPA3 encryption.
• Remote Management:
  • Supports OMCI (ONT Management and Control Interface) and TR-069 protocols for easy configuration and management from a remote location.

Specifications

• Model: TP-Link XC220-G3
• Wireless Standards: IEEE 802.11ac/n/a (5 GHz), IEEE 802.11b/g/n (2.4 GHz)
• Data Rates:
  • Downstream: Up to 2.488 Gbps (GPON), Up to 1.25 Gbps (EPON)
  • Upstream: Up to 1.244 Gbps (GPON), Up to 1.25 Gbps (EPON)

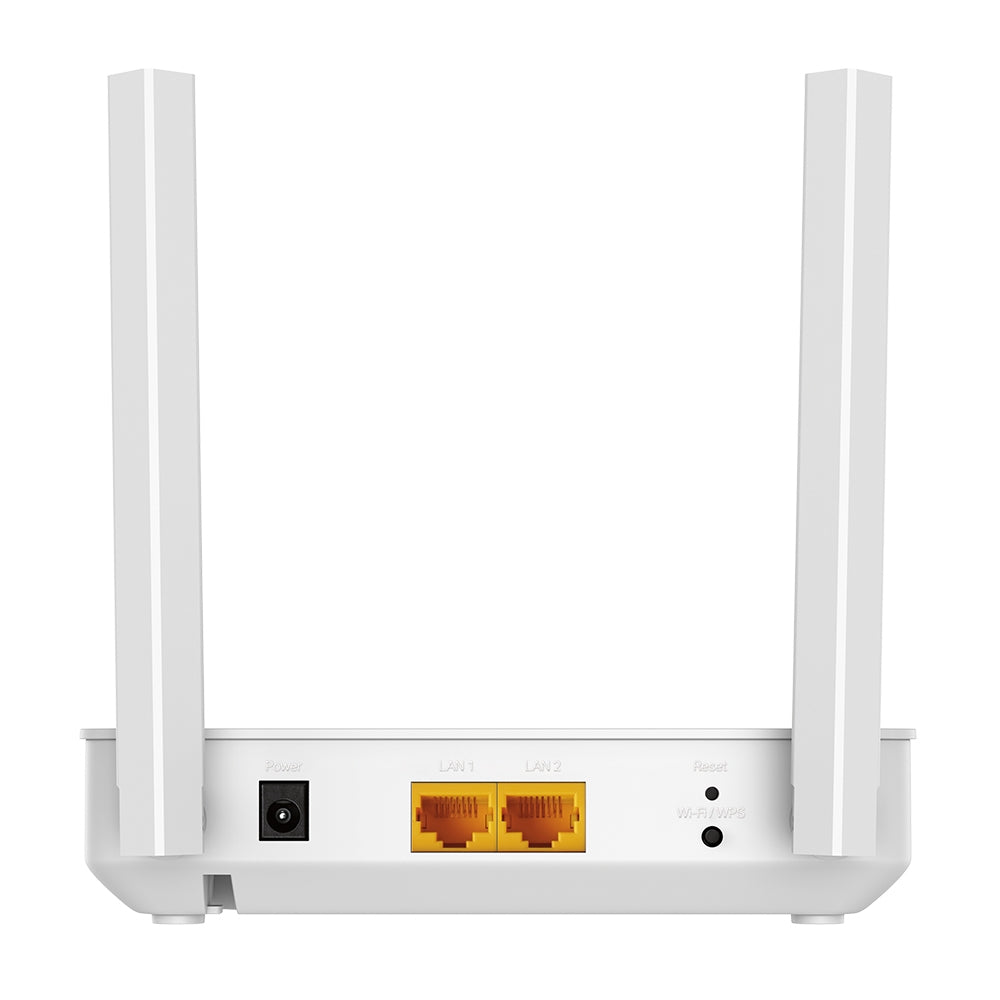

• Ports:
  • 2 x 10/100/1000 Mbps RJ45 LAN Ports
  • 1 x PON Port
• Antenna:
  • 2 External Dual Band Antennas
• Power Supply:
  • External power adapter (12V/1.0A)
• Dimensions:
  • Approximately 18 × 15 × 10 cm
• Weight:
  • Approximately 0.52 kg

Connectivity

• Wireless Frequency Bands:
  • Supports both the 2.4 GHz and 5 GHz bands.
• VPN Pass-through:
  • Supports PPTP, L2TP, and IPSec VPN pass-through.

Package Contents

• TP-Link XC220-G3 Router
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide
