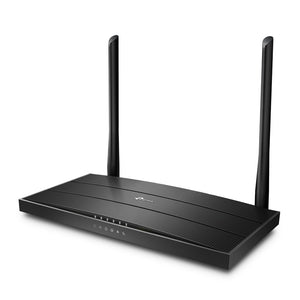

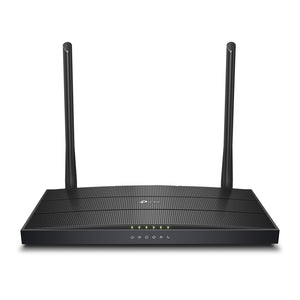

TP-Link XC220-G3V AC1200 Wireless VoIP XPON Router

The TP-Link XC220-G3V is a high-performance AC1200 Wireless VoIP XPON Router designed to deliver robust internet connectivity with integrated voice services. Supporting both GPON and EPON standards, this router is ideal for users seeking reliable dual-band Wi-Fi and advanced multimedia capabilities.

Key Features

• Superfast Dual Band Wi-Fi:
  • Achieves total data transfer speeds of up to 1167 Mbps, with 867 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band, ensuring fast and stable connections for multiple devices.
• High-Speed XPON Service:
  • Compliant with ITU-T G.983/G.984/G.988 standards, the XC220-G3V supports maximum data rates of up to 2.488 Gbps downstream and 1.244 Gbps upstream, making it suitable for bandwidth-intensive applications like streaming and gaming.
• Full Gigabit Ports:
  • Equipped with four Gigabit Ethernet ports, providing wired connections that are up to 10 times faster than standard Ethernet, ideal for connecting devices such as smart TVs, gaming consoles, and PCs.
• VoIP Support:
  • Features an FXS port that allows users to make or receive phone calls over the Internet by connecting a traditional telephone.
• Easy Remote Management:
  • Supports the ONT Management and Control Interface (OMCI), enabling easy configuration and management from a remote location.
• Smooth Connection for IPTV:
  • Supports VLAN and 802.1q for smooth network connections, enhancing performance for IPTV services.

Specifications

• Model: TP-Link XC220-G3V
• Wireless Standards: IEEE 802.11ac/n/a (5 GHz), IEEE 802.11b/g/n (2.4 GHz)
• Data Rates:
  • Up to 867 Mbps on 5 GHz
  • Up to 300 Mbps on 2.4 GHz

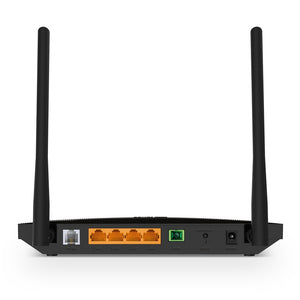

• Ports:
  • 4 x 10/100/1000 Mbps RJ45 LAN Ports
  • 1 x SC/APC XPON Port
  • 1 x RJ11 FXS Port
• Power Supply:
  • External power adapter (12V/1.5A)
• Dimensions:
  • Approximately 33 x 24 x 7 cm
• Weight:
  • Approximately 0.77 kg

Connectivity

• Wireless Frequency Bands:
  • Supports both the 2.4 GHz and 5 GHz bands.
• Security Features:
  • WPA/WPA2 encryption for secure wireless connections.

Package Contents

• TP-Link XC220-G3V Router
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide
