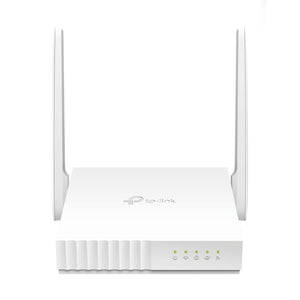

TP-Link XN020-G3 300Mbps Wireless N Gigabit XPON Router

The TP-Link XN020-G3 is a versatile 300Mbps Wireless N Gigabit XPON Router designed to provide high-speed internet connectivity for homes and small offices. Compliant with EPON and GPON standards, this router supports efficient data transmission and is equipped with a wireless access point and a switch for comprehensive networking solutions.

Key Features

• High-Speed XPON Service:
  • Compliant with ITU G.983/G.984 standards, the XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream, making it ideal for bandwidth-intensive applications such as streaming and gaming.
• Wireless Connectivity:
  • Offers wireless speeds of up to 300Mbps on the 2.4GHz band, providing stable connections for multiple devices.
• All-in-One Device:
  • Combines a GPON modem, a 300Mbps wireless access point, and a 1-port switch, making it a complete solution for home or office networking needs.
• Easy Remote Management:
  • Supports TR-069 protocol, enabling operators to remotely configure and manage end-user devices efficiently.
• Robust Security Features:
  • Includes support for various security protocols such as WPA/WPA2, ensuring secure wireless connections.

Specifications

• Model: TP-Link XN020-G3
• Wireless Standards: IEEE 802.11g, 802.11b, 802.11n
• Data Rates:
  • Up to 300Mbps at 2.4GHz

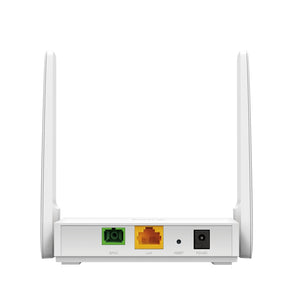

• Ports:
  • 1 x SC/APC Port
  • 1 x 10/100/1000Mbps LAN Port
• Power Supply:
  • External power adapter (12V/0.6A)
• Dimensions:
  • Approximately 115 x 106.7 x 24.3 mm (4.5 x 4.2 x 1.0 in)
• Weight:
  • Approximately 0.546 kg

Connectivity

• Network Interface:
  • Supports IPv4 and IPv6 protocols.
• Advanced Features:
  • Dynamic DNS support (DynDns, NO-IP), VLAN support (802.1Q), and IGMP v1/v2/v3 for multicast traffic management.

Package Contents

• TP-Link XN020-G3 Router
• RJ45 Ethernet Cable
• Quick Installation Guide
• Power Adapter
